Order No.: 73-3319

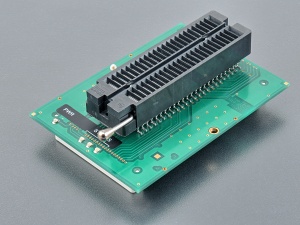

Universal programming module for devices in DIL package up to 48 pins, pitch 2.54mm, body 300-600mil
operation (mechanical) life of ZIF socket - 25.000 actuations
supported from PG4UW software version 3.17

Ord. no. 73-3319
Socket ZIF DIL48, open top type
Bottom 2 female connectors by 68 pins, receptacle type
Class Universal
Subclass DIL

Order no.: 73-3319
Price:        € 180,00

Module manual

  • Protect the contacts of module's connectors and ZIF socket from contamination. Any dirt and/or fat on contacts may cause errors during programming.
  • Proceed with care! Incorrect insertion of device in module's ZIF socket may lead to programmed device damage.
  • Unscrew knurled thumb screws. Insert programming module into Programmer Module Interface connectors, until it clicks. Due to connectors shape, only one orientation and position of programming module in Programmer Module Interface connectors is possible. Screw knurled thumb screws to fix programming module to programmer.
  • Push the cover of module's ZIF socket (the topmost movable part) to open the socket. Insert the device into module's ZIF socket. Correct position of programmed device in module's ZIF socket is indicated by picture near (usually on left above) the module's ZIF socket. On that picture, reference corner of device (e.g. position of pin 1) is indicated by dot, by number 1, by bevelled corner or by any combination of mentioned. Then release module's ZIF socket.
  • Visually check the placement of programmed device in module's ZIF socket. If everything looks OK, the device is ready for programming.
  • To take out the device from module, push the cover of module's ZIF socket and remove the device.
  • When you finish the work with module, unscrew 2 knurled thumb screws and remove the module from Programmer Module Interface connectors.
  • For handling with the device we recommended to use a vacuum pick up tool.
  • Operating conditions: temperature 5°C ÷ 40°C (41°F ÷ 104°F), humidity 20% ÷ 80% non-condensing.
