  Elnec produces a wide range of programmers which will satisfy your programming needs. All of our programmers are useable under Windows XP to Windows 10 (32bit and 64bit) operating systems.

All of Elnec programmers meets CE requirements.


More and more devices every day

Multi Programmer:

  • BeeHive208S - Stand-Alone Multiprogramming System
      The new BeeHive208S is speed-up improvement of BeeHive8S programmer. Programming speed improvement was focused to large memories (NAND Flash, parallel NOR Flash, serial NOR Flash). BeeProg2 is faster by 20-70% than BeeHive8S in such cases.
  • BeeHive204 - Multi-Programming System
      The new BeeHive204 is speed-up improvement of BeeHive4+ programmer. Programming speed improvement was focused to large memories (NAND Flash, parallel NOR Flash, serial NOR Flash). BeeProg2 is faster by 20-70% than BeeHive4+ in such cases.
  • BeeHive304 - Multi-Programming System
    BeeHive304  The new BeeHive304 is an Ultra speed universal programmer, design was focused on high-capacity memories programming. Sustainable programming speed greater than 31 MBytes per second  the 8 GB eMMC NAND Flash could be done in less than 250 sec, if supported memory is fast enough. Interfaces: USB2.0 and LAN
  • BeeProg+ /BeeProg2 - Multi-Programming System
    Universal and flexible multiprogramming system for virtually all programmable chips, based on the BeeProg+/BeeProg2 programmer.

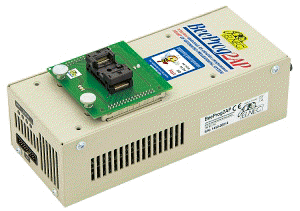

  • BeeProg2AP Production-Programmer
    Extremly fast universal programmer - the core for automated programmers and automatic test equipments (ATE)
  • SofTec - Multi-Programming System MP8011A
    Multi-programmier System for microcontrollers: Microchip PIC, Motorola 68HC05, 68HC08, NS COP8F, STM

Universal Programmer:

  • BeeProg+ Discontinued
    Extremely fast universal programmer, 48 pindrivers. BeeProg programmer successor.
    No adapter required for any DIL devices.
    USB/LPT connection to PC. ISP capability.
  • BeeProg2C
      The new BeeProg2C is speed-up improvement of BeeProg+ programmer. Programming speed improvement was focused to large memories (NAND Flash, parallel NOR Flash, serial NOR Flash). BeeProg2 is faster by 20-70% than BeeProg+ in such cases.
  • BeeProg2
      The new BeeProg2 is speed-up improvement of BeeProg+ programmer. Programming speed improvement was focused to large memories (NAND Flash, parallel NOR Flash, serial NOR Flash). BeeProg2 is faster by 20-70% than BeeProg+ in such cases.
  • BeeProg3
      Ultra speed universal 64-pindrive programmer. Sustainable programming speed greater than 31 MBytes per second the 8 GB eMMC NAND Flash could be done in less than 250 sec, if supported memory is fast enough.
  • BeeProg
    Please read application note
  • SmartProg2
    Universal very fast programmer, 40 pindrivers.
    No adapter required for any DIL devices.
    ISP capability.
    Connection to PC: USB port.
  • EE-Tools TopMax
    Extremely fast, expandable universal programmer.
    No adapter required for any DIL devices.
    Multiprogramming (Gang programmer) capability.
  • Lab Tool-48UXP
    Extremely fast, universal programmer, 48 pindrivers.
    No adapter required for any DIL devices.
  • GALEP- 4
    Versatilely pocket programmer, 40 pindrivers.
    No adapter required for any DIL devices.
  • GALEP- 5
    Versatilely pocket programmer, 48 pindrivers.
    No adapter required for any DIL devices.
    USB connection

 Back to top

Specialized Programmer:

  • MEMprog2
    Portable and very fast programmer of EPROM/EEPROM/Flash EPROM/serial EEPROM up to 40 pins.
    Low voltage types support.
    Upgradeable to SmartProg2 programmer.
  • T51prog2     Discontinued
    Portable and very fast programmer of MCS51 series and Atmel AVR microcontrollers.
    ISP capability.
    Upgradeable to SmartProg2 programmer.
  • PIKprog2     Discontinued
    Portable and very fast programmer of Microchip PICmicro series microcontrollers.
    ISP capability.
    Upgradeable to SmartProg2 programmer.
  • SEEprog      Discontinued
    Serial EEPROM programmer.
 Back to top

Socket converters for programmers. Converts from DIL to:

  • BGA
  • PLCC
  • PSOP
  • QFP
  • SDIP
  • SSOP
  • SOIC
  • TSOP

Additional modules for programmers.
