BeeHive208S Multiprogramming system

Extremely fast universal 8x 48-pindrive Stand-Alone concurrent multiprogramming system.




Short description:

  • supported devices from manufacturers by version of SW
  • Eight independent universal programming modules (BeeProg2 based) in one unit
  • extremely fast programming, one of the fastest programmers in this category. Programs 64Mbit NOR Flash memory less than 9 seconds and 1Gbit NAND Flash less than 70 sec.
  • powerful independent pin driver circuit for each and every pin of the programmer
  • n-circuit programming capability through ISP connector
  • Graphics control unit with touch screen
  • Very low voltage support for latest Flash memory chips
  • ESD protection on each pin of the sockets
  • no adapter required for any DIL devices
  • Microsoft Windows Embedded 8.1 Industry Pro driven control PC inside of programmer
  • warranty - 3 years

Optional accessories:

 Back to top

Features

GENERELL

BeeHive208S programmer is practically identical with the BeeHive8S programmer, difference is "only" much higher programming speed (20-70%) of high-capacity memories.

The BeeHive208S is an extremely fast universal 8x 48-pin-drive Stand-Alone concurrent multiprogramming system designed for high volume production programming with minimal operator effort. The chips are programmed at near theoretical maximum programming speed.

The BeeHive208S consists of 8 independent isolated universal programming modules, based on the BeeProg2 programmer hardware. Therefore the sockets can run asynchronously (concurrent programming mode). Each programming module starts programming at the moment the chip is detected as inserted in the socket properly - independent of the status of the other programming modules. As a result, seven programming modules can be working while replacing the programmed chip on the eighth.

Graphics control unit with touch screen provides basic control and easy monitoring of the programming flow.

Modular construction of the hardware - the programming modules work independently - allowing for continued operation if a part of the circuit becomes inoperable. It also makes service quick and easy.

Hands-free operation: asynchronous and concurrent operation allows a chip to begin programming immediately upon insertion. The operator merely removes the finished chip and inserts a new chip. Operator training is therefore minimized.

Supports all types of the silicon technologies found in the programmable devices of today and tomorrow without family-specific modules. You can be sure that new device support will require only a software update and (if necessary) a simple package convertor (programming adapter), therefore minimizing ownership costs.

Using built-in in-circuit serial programming (ISP) connector, the programmer is able to program ISP capable chips in circuit.

Combines very competitive pricing with excellent hardware design for reliable programming. Probably the best "value for the money" programmer in its class.

Very fast programming due to high-speed FPGA driven hardware and execution of time-critical routines inside the programmer. As a result, when used in manually-operated production, this one-socket-programmer in most cases waits for an operator.

Banana jack for ESD wrist strap connection to easily implement ESD protection control.

 Back to top

HARDWARE

FPGA based totally reconfigurable 48 powerful TTL pindrivers provide H/L/pull_up/pull_down and read capability for each pin of socket. Advanced pindrivers incorporate high-quality high-speed circuitry to deliver signals without overshoot or ground bounce for all supported devices.Pin drivers operate down to 1.8V so you'll be ready to program the full range of today's advanced low-voltage devices.

Each programming module performs a device insertion test (wrong or backward position) and contact check (poor contact pin-to-socket) before it programs each device. These capabilities, supplemented by over-current protection and signature-byte check, help prevent chip damage due to operator error.

The self-test capability allows the operator to run the diagnostic part of software to thoroughly check the health of the each programming module.

Built-in protection circuits eliminate damage to the programming module and/or programmed device due to environment or operator failure. All ZIF socket pins inputs and all pins of ISP connector of the BeeHive208S programmer are protected against ESD up to 15kV.

The BeeHive208S programmer performs programming verification at the marginal level of supply voltage, which obviously improves programming yield, and guarantees long data retention.

Various socket converters are available to handle devices in PLCC, SOIC, PSOP, SSOP, TSOP, TSSOP, TQFP, QFN (MLF), SDIP, BGA and other packages.

 Back to top

SOFTWARE (production mode control part)

This part of the software is designed for the easy monitoring of high-volume production operations.

There are two ways to control and monitor programming flow of the BeeHive208S Stand-Alone multiprogramming system: 1) using the control unit or 2) using a standard display/keyboard/mouse.

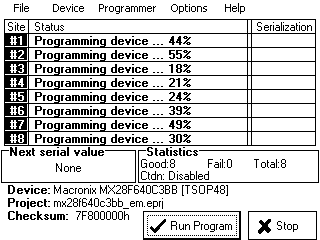

The Graphics control unit with touch screen provides all basic information about programming flow and allows the most basic level of controlling of the BeeHive208S programmer.

Usage of a display/keyboard/mouse allows viewing all necessary information about programming flow while providing more comfort to the operator.

A Project file is used to control the BeeHive208S Stand-Alone multiprogramming system. A Project file contains user data, chip programming setup information, chip configuration data, auto programming command sequence, etc. Operator error is therefore minimized, because the project file is normally created and proofed by engineering and then given to the operator. An optional protected mode can be set for the Project file to avoid unwanted changes to it.

Each chip may be programmed with different data such as a unique serial number, configuration or calibration information.

SOFTWARE (production modules driver,engineering mode control)

This part of the software is designed for the quick and easy preparation of the project file to use in the production mode control software.

Each programming module is driven by an easy-to-use control program with pull-down menu, hot keys and on-line help. Device selection is performed by its type, by manufacturer or simply by typing a fragment of the vendor name and/or part number. It is the same years-proven software, that is used for all other Elnec single-site programmers.

Standard device-related commands (read, blank check, program, verify, erase) are enhanced by test functions (insertion test, connection check, signature-byte check), as well as some special functions (auto-increment, production mode - start immediately after insertion of chip into socket).

All known data formats are supported. Automatic file format detection and conversion occurs during loading of the file. It is possible to use Jam files (JEDEC standard JESD-71) and VME files

The rich-featured auto-increment function enables one to assign individual serial numbers to each programmed device - or simply increments a serial number. The function also enables one to read serial numbers or any programmed device identification signatures from a file.

The software also provides considerable information about programmable devices. As a selection aide, drawings of all available packages are provided. The software provided also explains chip labelling (the meaning of prefixes and suffixes on the chips) for each supported IC.

  Back to top

CARE FOR THE CUSTOMERS

New Device Request (AlgOR Service)
  • It is important to remember, that a support of most of the new devices requires only a software update, because the BeeHive208S is based on the truly universal (BeeProg2) programmer. With our prompt service you often can have a new device added to the list of supported devices within hours! See AlgOR (Algorithm On Request) service and OnDemand software for details.
  • This service is almost in all cases free. Please note that we can ask customer to share the cost if development cost is too high.
Free lifetime software update
  • Most current version of Elnec programmers software with support of newly added devices is available for free here.

Free Technical support

  • Elnec provide customers technical support (WebForm/e-mail based) available usually within few hours, at the latest next working day.

Keep-Current service

  • Keep Current - service means, that ELNEC ships of a latest version of programmer software and updated user documentation (Keep-Current package) to customer . A Keep-Current service is your hassle-free guarantee that you are doing the highest quality programming on ELNEC programmers, at minimal cost.

Promt delivery

Combination of extensive stock, flexible manufacturing and shipping of Elnec products by world class carriers (like DHL) warrants customers very fast and secure delivery of ordered Elnec products.

Warranty

Advanced design of the BeeHive208S production programmer, including protective circuits, original brand components, careful manufacturing and burning-in allow us to provide a three-year warranty on parts and workmanship of the programmer (limited 25000-cycle warranty on ZIF sockets). Although we take as much care as possible to integrate high quality in the build-in computer, we can't provide a higher warranty than we receive from our suppliers of the computer parts. Therefore there is a limited warranty of one year on all computer parts such as the motherboard, CPU, HD, touchscreen, ... .

Specification (the BeeHive208S multiprogramming system)



8x universal programming module (8x 48-pin DIL ZIF sockets and 8x ISP connectors)
operation result LEDs, LED power indicator.
banana jack for ESD wrist strap connection.
banana jack for connection to ground

Specifications (PC system internal to the programmer)

Microsoft Windows XP Embedded operating system
PC Intel Core 2
Quad 2.66GHz
2 GB RAM
320GB HDD






Specifications (valid for each programming module)

Hardware

Base unit, DACs

  • USB 2.0 high-speed compatible port, up to 480 Mbit/s transfer rate
  • on-board intelligence: powerful microprocessor and FPGA based state machine
  • three D/A converters for VCCP, VPP1, and VPP2, controllable rise and fall time
  • VCCP range 0..8V/1A
  • VPP1, VPP2 range 0..26V/1A
  • autocalibration
  • selftest capability

ZIF socket, pindriver

  • 48-pin DIL ZIF (Zero Insertion Force) socket accepts both 300/600 mil devices up to 48-pin
  • pindrivers: 48 universal
  • VCCP/VPP1/VPP2 can be connected to each pin
  • perfect ground for each pin
  • FPGA based TTL driver provides H, L, CLK, pull-up, pull-down on all pindriver pins
  • analog pindriver output level selectable from 1.8 V up to 26V
  • current limitation, overcurrent shutdown, power failure shutdown
  • ESD protection on each pin of socket (IEC1000-4-2: 15kV air, 8kV contact)
  • continuity test: each pin is tested before every programming operation

ISP connector

  • 20-pin male type with missinsertion lock
  • 6 TTL pindrivers, provides H, L, CLK, pull-up, pull-down; level H selectable from 1.8V up to 5V to handle all (low-voltage including) devices.
  • 1x VCCP voltage (range 2V..7V/100mA), can be applied to two pins
  • programmed chip voltage (VCCP) with both source/sink capability and voltage sense
  • 1x VPP voltage (range 2V..25V/50mA), can be applied to six pins
  • target system supply voltage (range 2V..6V/250mA)
  • ESD protection on each pin of ISP connector (IEC1000-4-2: 15kV air, 8kV contact)
  • two output signals, which indicate state of work result = LED OK and LED Error (active level: min 1.8V)
  • input signal, switch YES! equivalent (active level: max 0.8V)
 Back to top

DEVICE SUPPORT

Programmer, in ZIF socket

  • NAND FLASH: Samsung K9xxx, KFxxx, SK Hynix (ex Hynix) HY27xxx, H27xxx, Toshiba TC58xxx, TH58xxx, Micron MT29Fxxx, (ex Numonyx ex STM) NANDxxx, Spansion S30Mxxx, S34xxx, 3D-Plus 3DFNxxx, ATO Solution AFNDxxx, Fidelix FMNDxxx, Eon Silicon Sol. EN27xxx, ESMT F59xxx, LBA-NAND Toshiba THGVNxxx
  • serial NAND FLASH: Micron MT29Fxxx, GigaDevice GD5Fxxx
  • eMMC: Hynix H26Mxxxxxxxx, Kingston KE44B-xxxx/xxx, Micron MTFCxxxxxx, Numonyx NANDxxxxxxxx, Phison PSM4A11-xx, Samsung KLMxxxxxxx, SanDisk SDINxxx-xx, Toshiba THGBMxxxxxxxxxx
  • Multi-chip devices: NAND+RAM, NOR+RAM, NOR+NOR+RAM, NAND+NOR+RAM
  • Serial Flash: standard SPI, high performance Dual I/O SPI and Quad I/O SPI (25Bxxx, 25Dxxx, 25Exxx, 25Fxxx, 25Lxxx, 25Mxxx, 25Pxxx, 25Qxxx, 25Sxxx, 25Txxx, 25Uxxx, 25Vxxx, 25Wxxx, 25Xxxx, 26Vxxx, 45PExx, MX66Lxxx, S70FLxxx), DataFlash (AT45Dxxx, AT26Dxxx)
  • parallel NOR Flash: 28Fxxx, 29Cxxx, 29Fxxx, 29BVxxx, 29LVxxx, 29Wxxx, 49Fxxx series, Samsung's K8Fxxxx, K8Cxxxx, K8Sxxxx, K8Pxxxx series, ...
  • EPROM: NMOS/CMOS, 27xxx and 27Cxxx series
  • EEPROM: NMOS/CMOS, 28xxx, 28Cxxx, 27EExxx series, 3D Plus 3DEExxxxxxxx
  • mDOC H3: SanDisk (ex M-Systems) SDED5xxx, SDED7xxx, MD2533xxx, MD2534xxx, Hynix HY23xxx
  • FRAM: Ramtron
  • MRAM: Everspin MRxxxxx8x, 3D Plus 3DMRxxxxxxxx
  • NV RAM: Dallas DSxxx, SGS/Inmos MKxxx, SIMTEK STKxxx, XICOR 2xxx, ZMD U63x series
  • Serial E(E)PROM: Serial E(E)PROM: 11LCxxx, 24Cxxx, 24Fxxx, 25Cxxx, 30TSExxx, 34Cxxx, 34TSxx, 59Cxxx, 85xxx, 93Cxxx, NVM3060, MDAxxx series, full support for LV series, AT88SCxxx
  • Serial FRAM: Cypress(Ramtron): FM24xxxxxx, FM25xxxxxx, Fujitsu: MB85RCxxxx, MB85RSxxxx, Lapis(OKI, Rohm): MR44xxxxx MR45xxxxx
  • Serial MRAM: Everspin MH20xxx, MH25xxx
  • Configuration (EE)PROM: XCFxxx, XC17xxxx, XC18Vxxx, EPCxxx, EPCSxxx, AT17xxx, AT18Fxxx, 37LVxx
  • 1-Wire E(E)PROM: DS1xxx, DS2xxx
  • PLD Altera: MAX 3000A, MAX 7000A, MAX 7000B, MAX 7000S, MAX7000AE, MAX II/G/Z, MAX V
  • PLD Lattice: ispGAL22V10x, ispLSI1xxx, ispLSI1xxxEA, ispLSI2xxx, ispLSI2xxxA, ispLSI2xxxE, ispLSI2xxxV, ispLSI2xxxVE, ispLSI2xxxVL, LC4xxxB/C/V/ZC/ZE, M4-xx/xx, M4A3-xx/xx, M4A5-xx/xx, M4LV-xx/xx, ispCLOCK, Power Manager/II, ProcessorPM
  • PLD: Xilinx: XC9500, XC9500XL, XC9500XV, CoolRunner XPLA3, CoolRunner-II
  • SPLD/CPLD series: AMD, AMI, Atmel, Cypress, Gould, ICT, Lattice, National Semicond., Philips, STMicroelectronics, TI (TMS), Vantis, VLSI
  • FPGA: FPGA: Microsemi(Actel): ProASIC3, IGLOO, Fusion, ProASICplus, SmartFusion
  • FPGA: Lattice: MachXO, MachXO2, LatticeXP, LatticeXP2, ispXPGA
  • FPGA: Xilinx: Spartan-3AN
  • Clocks: TI(TMS), Cypress
  • Special chips: Atmel Tire Pressure Monitoring ATA6285N, ATA6286N; PWM controllers: Zilker Labs, Analog Devices; Multi-Phase ICs: IR(Chil Semiconductor); Gamma buffers: AUO, Maxim, TI, ...
  • Microcontrollers MCS51 series: 87Cxxx, 87LVxx, 89Cxxx, 89Sxxx, 89Fxxx, 89LVxxx, 89LSxxx, 89LPxxx, 89Exxx, 89Lxxx, all manufacturers, Philips LPC series
  • Microcontrollers Intel 196 series: 87C196 KB/KC/KD/KT/KR/...
  • Microcontrollers Atmel ARM. AT91SAM7Sxx, AT91SAM7Lxx, AT91SAM7Xxx, AT91SAM7XCxx, AT91SAM7SExx series;
  • Microcontrollers Atmel ARM9: AT91SAM9xxx series;
  • Microcontrollers ARM Cortex-M3: ATSAM3Axxx, ATSAM3Uxxx, ATSAM3Nxxx, ATSAM3Sxxx, ATSAMD20, ATSAM3Xxxx series
  • Microcontrollers ARM Cortex-M4: ATSAM4Sxxx series
  • Microcontrollers Atmel AVR 8bit/16bit: AT90Sxxxx, AT90pwm, AT90can, AT90usb, ATtiny, ATmega, ATxmega series
  • Microcontrollers Atmel AVR32: AT32UC3xxxx, ATUCxxxD3/D4/L3U/L4U series
  • Microcontrollers TI (Chipcon): CC11xx, CC24xx, CC25xx, CC85xx series
  • Microcontrollers Coreriver: Atom 1.0, MiDAS1.0, 1.1, 2.0, 2.1, 2.2, 3.0 series
  • Microcontrollers Cypress: CY7Cxxxxx, CY8Cxxxxx
  • Microcontrollers ELAN: EM78Pxxx
  • Microcontrollers EPSON: S1C17 series
  • Microcontrollers Explore Microelectronic: EPF01x, EPF02x series
  • Microcontrollers Generalplus: GPM8Fxxx series
  • Microcontrollers GreenPeak: GPxxx series
  • Microcontrollers Infineon(Siemens): XC800, C500, XC166, C166 series
  • Microcontrollers MDT 1xxx and 2xxx series
  • Microcontrollers Megawin: MG87xxx, MPC82xxx series
  • Microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17Cxxx, PIC18xxx, PIC24xxx, dsPIC, PIC32xxx series
  • Microcontrollers Motorola/Freescale: HC05, HC08, HC11, HC12, HCS08, RS08, S12, S12X, MC56F, MCF51, MCF52 series, Kinetis (K,L), Qorivva/5xxx Power Architecture
  • Microcontrollers Myson MTV2xx, 3xx, 4xx, 5xx, CS89xx series
  • Microcontrollers National: COP8xxx series
  • Microcontrollers NEC: uPD70Fxxx, uPD78Fxxx series
  • Microcontrollers Novatek: NT68xxx series
  • Microcontrollers Nordic Semiconductor: nRF24LExxx, nRF24LUxxx, nRF315xx, nRF51xxx Flash and OTP series
  • Microcontrollers Nuvoton ARM Cortex-Mx: NUC1xx, M05x, Mini51, Nano1xx series
  • Microcontrollers Nuvoton (Winbond): N79xxx, W77xxx, W78xxx, W79xxx, W83xxx series
  • Microcontrollers NXP (Philips) ARM Cortex-Mx: LPC11xx, LPC11Cxx, LPC11Dxx, LPC11Uxx, LPC12xx, LPC12Dxx, LPC13xx, LPC17xx, LPC11Axx, LPC11Exx, LPC11xxLV, LPC18xx, LPC43xx, LPC8xx, EM7xx, series
  • Microcontrollers NXP (Philips) UOC series: UOCIII, UOC-TOP, UOC-Fighter (TDA1xxxx) series
  • Microcontrollers NXP (Philips) ARM7: LPC2xxx, MPT6xx, PCD807xx, SAF7780xxx series
  • Microcontrollers NXP (Philips) ARM9: LPC31xx series
  • Microcontrollers Pasat: TinyModule DIL40, DIL50 series
  • Microcontrollers Scenix (Ubicom): SXxxx series
  • Microcontrollers Syntek: STK6xxx series
  • Microcontrollers Renesas: R8C/Tiny series, uPD70Fxxx, uPD78Fxxx series, RL78 series, R32C series
  • Microcontrollers SyncMOS: SM39xxx, SM59xxx, SM73xxx, SM79xxx, SM89xxx series
  • Microcontrollers & Programmable System Memory STMicroelectronics: uPSD, PSD series
  • Microcontrollers STM (ex SGS-Thomson): ST6xx, ST7xx, ST10xx, STR7xx, STR9xx, STM32F/L/W, STM8A/S/L series, SPC5 (Power Architecture)
  • Microcontrollers Silicon Laboratories(Cygnal): C8051 series
  • Microcontrollers Silicon Laboratories(Cygnal): C8051 series
  • Microcontrollers Silicon Laboratories: SiM3Cxxx, SiM3Lxxx, SiM3Uxxx series
  • Microcontrollers Texas Instruments: MSP430 series, MSC12xx series, TMS320F series, CC430 series
  • Microcontrollers Texas Instruments: MSP430 series, MSC12xx series, TMS320F series, CC430 series,
  • Microcontrollers ZILOG: Z86/Z89xxx and Z8Fxxxx, Z8FMCxxxxx, Z16Fxxxx, ZGP323xxxxxx, ZLF645xxxxxxx, ZLP12840xxxxx, ZLP323xxxxxxx series
  • Microcontrollers other: EM Microelectronic, Spansion(Fujitsu), Goal Semiconductor, Hitachi, Holtek, Novatek, Macronix, Princeton, Winbond, Samsung, Toshiba, Mitsubishi, Realtek, M-Square, ASP, Coreriver, Gencore, EXODUS Microelectronic, Topro, TinyARM, VersaChips, SunplusIT, M-Square, QIXIN, Signetic, Tekmos, Weltrend, Amic, Cyrod Technologies, Ember, Ramtron, Nordic Semiconductor, Samsung, ABOV Semiconductor...
  • EPROM: 2708 *1
  • PLD: Bipolar PALxxx *2

Programmer, through ISp connector

  • Serial E(E)PROM: IIC series, MW series, SPI series, KEELOQ series, PLD configuration memories, UN I/O series
  • 1-Wire E(E)PROM: DS1xxx, DS2xxx
  • Serial FRAM: Cypress(Ramtron): FM24xxxxxx, FM25xxxxxx, Fujitsu: MB85RCxxxx, MB85RSxxxx, Lapis(OKI, Rohm): MR44xxxxx, MR45xxxxx
  • Microcontrollers Atmel: AT89Cxxx, AT89Sxxx, AT89LSxxx, AT89LPxxx, AT90pwm, AT90can, AT90usb, AT90Sxxxx, ATtiny, ATmega, ATxmega series
  • Microcontrollers Atmel AVR32: AT32UC3xxxx, ATUCxxxD3/D4/L3U/L4U series
  • Microcontrollers Atmel ARM7: AT91SAM7Sxx, AT91SAM7Xxx, AT91SAM7XCxx, AT91SAM7SExx series;
  • Microcontrollers Chipcon (TI): CC11xx, CC24xx, CC25xx series
  • Microcontrollers Cypress: CY8C2xxxx
  • Microcontrollers Elan: EM78Pxxx, EM6xxx series
  • Microcontrollers EM Microelectronic: 4 und 8 bit Series
  • Microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17xxx, PIC18xxx, PIC24xxx, dsPIC, PIC32xxx series
  • Microcontrollers Mitsubishi: M16C
  • Microcontrollers Motorola/Freescale: HC08 (both 5-wire, All-wire), HC11, HC12, HCS08, S12, S12X, MC56F, MCF52 series
  • Microcontrollers Nordic Semiconductor: nRF24xxx
  • Microcontrollers NEC: uPD7xxx series
  • Microcontrollers NXP (Philips) ARM7: LPC2xxx, MPT6xx series
  • Microcontrollers NXP (Philips) ARM Cortex-Mx: LPC11xx, LPC11Cxx, LPC11Dxx, LPC11Uxx, LPC12xx, LPC12Dxx, LPC13xx, LPC17xx, LPC11Axx, LPC11Exx, LPC11xxLV, LPC18xx, LPC43xx, LPC8xx, EM7xx, series
  • Microcontrollers Philips (NXP): LPCxx series, 89xxx series
  • Microcontrollers Renesas: R8C/Tiny series, uPD7xxx series
  • Microcontrollers Realtek, M-Square
  • Microcontrollers Samsung: ICPZBSxxx series
  • Microcontrollers Silicon Laboratories(Cygnal): C8051 series
  • Microcontrollers Scenix (Ubicom): SXxxx series
  • Microcontrollers Silicon Laboratories(Energy Micro): EFM32Gxx, EFM32GGxx, EFM32LGxx, EFM32TGxx, EFM32WGxx series
  • Microcontrollers STM (ex SGS-Thomson): ST6xx, ST7xx, ST10xx, STR7xx, STR9xx, STM32F/L/W, STM8A/S/L series, SPC5 (Power Architecture)
  • Microcontrollers Silicon Laboratories(Cygnal): C8051 series
  • Microcontrollers & Programmable System Memory STMicroelectronics: uPSD, PSD series
  • Microcontrollers TI: MSP430 series (both JTAG and BSL), MSC12xxx series, CC430 series, LM4F series, TM4C series
  • Microcontrollers ZILOG: Z8Fxxxx, Z8FMCxxxxx, Z16Fxxxx series, ZLF645x0xx
  • Various PLD (also by Jam/VME/SVF/STAPL/... Player/JTAG support):Altera: MAX 3000A, MAX 7000A, MAX 7000B, MAX 7000S, MAX 9000, MAX II/G/Z, MAX V Xilinx: XC9500, XC9500XL, XC9500XV, CoolRunner XPLA3, CoolRunner-II
  • PLD Lattice: ispGAL22xV10x, ispLSI1xxxEA, ispLSI2xxxE, ispLSI2xxxV, ispLSI2xxxVE, ispLSI2xxxVL, M4-xx/xx, M4LV-xx/xx, M4A3-xx/xx, M4A5-xx/xx, LC4xxxB/C/V/ZC/ZE, ispCLOCK, Power Manager/II, ProcessorPM
  • FPGA: Microsemi(Actel): ProASIC3, IGLOO, Fusion, ProASICplus, SmartFusion
  • FPGA: Lattice: MachXO, MachXO2, LatticeXP, LatticeXP2, ispXPGA

Notes:* - are obsolete, programming with PLD-1 or 2708 additional module

for all supported devices see actual DEVICE LIST

Identification of Manufacturer with Logos

Package support

  • support devices in DIP into socket of the programmer
  • package support includes DIP, SDIP, PLCC, JLCC, SOIC, SOP, PSOP, SSOP, TSOP, TSOPII, TSSOP, QFP, PQFP, TQFP, VQFP, QFN (MLF), SON, BGA, EBGA, FBGA, VFBGA, UBGA, FTBGA, LAP, CSP, SCSP etc.
  • devices in non-DIP packages up to 48 pins are supported, if possible, by universal programming adapters
  • programmer is compatible with many third-party adapters for non-DIP support

Programming speed

  • Note: It is important to know that at Elnec we always use random number data patterns for programming speed testing. Some our competitors use a "sparse" data pattern, where only a few non-blank data addresses are programmed or they used data with only a few 0 bits (FE, EF, etc.). This deceptive approach can "decrease" programming time considerably. If you plan to compare, always ask what type of pattern they use for their advertised programming speed.
Device Size [bits] Operation Time
K8P6415UQB (parallel NOR Flash) 400080hx16 (64 Mega) programming + verify 13 sec.
K9F1G08U0M (parallel NAND Flash) 400100hx16 (64 Mega) programming + verify 122,7 sec.
H26M11002AAR (eMMC NAND Flash 8400000hx8 (1 Giga) programming + verify 480 sec.
QB25F640S33 (serial Flash) 800200hx8 (64 Mega) programming + verify 30,7 sec.
AT89C51RD2 (microcontroller) 10000hx8 programming + verify 14,4 sec.
PIC32MX360F512L (microcontroller) 80000hx8 programming + verify 8,9 sec.
Note: *1 - implementation is the same as in card readers. Verification of programming is performs internal controller. Internal controller confirm the proper programming using status register.

SOFTWARE

  • Algorithms: only manufacturer approved or certified algorithms are used. Custom algorithms are available at additional cost.
  • Algorithm updates: software updates are available regulary, approx. every 4 weeks, free of charge. OnDemand version of software is available for highly needed chips support and/or bugs fixes. Available nearly daily.
  • Main features: revision history, session logging, on-line help, device and algorithm information.

Device operations

  • standard:
  • intelligent device selection by device type, manufacturer or typed fragment of part name
  • automatic ID-based selection of EPROM/Flash EPROM
  • blank check, read, verify
  • program
  • erase
  • configuration and security bit program
  • illegal bit test
  • Konfiguration und "security bit program"
  • Illegal bit Test
  • checksum
  • Interpretiert die JAM standard Test- und Programmiersprache (STAPL), JEDEC Standard JESD-71
  • interprete the VME files compressed binary variation of SVF files
  • security
  • insertion test, reverse insertion check
  • contact check
  • ID byte check
  • special:
  • production mode (automatic start immediately after device insertion)
  • auto device serial number increment
  • statistic
  • count down mode

Buffer operations

  • view/edit, find/replace
  • fill/copy, move, byte swap, word/dword split
  • checksum (byte, word)
  • print

File load/save

  • there is no download time because the embedded PC controls the programmer
  • automatic file type identification

Supported file formats

  • unformatted (raw) binary
  • HEX: Intel, Intel EXT, Motorola S-record, MOS, Exormax, Tektronix, ASCII-SPACE-HEX,, ASCII HEX
  • Altera POF, JEDEC (ver. 3.0.A), eg. from ABEL, CUPL, PALASM, TANGO PLD, OrCAD PLD, PLD Designer ISDATA, etc.
  • JAM (JEDEC STAPL Format), JBC (Jam STAPL Byte Code), STAPL (STAPL File) JEDEC standard JESD-71
  • VME (ispVME file VME2.0/VME3.0)
 Back to top

GENERAL

Operations

  • operating voltage 110-240V AC rated, 90-264 VAC max., 47-63 Hz
  • power consumption max. 300W active
  • maximal outside dimensions 625x465x115 mm ( 24.6 x 18.3 x 4.5 inch)
  • weight (programmer) 14.9kg (32.85 lb)
  • operation temperature 5°C ÷ 40°C (41°F ÷ 104°F)
  • operation humidity 20%..80%, non condensing

Package includes

  • BeeHive208S programmer
  • power cord
  • diagnostic POD for ZIF socket selftest of the programmer (1x)
  • diagnostic POD for ISP connector selftest of the programmer (1x)
  • 48 Pins Calibration test POD, Type I (1x)
  • ISP cable (8x)
  • anti-dust cover for ZIF socket (8x)
  • user manual (both on CD and printed form)
  • software
  • calibration test report
  • transport case

Bonus pack:

  • ESD wrist strap with cord and banana plug
  • Vacuum pen
  • Gift (surprise)

Prices:  BeeHive208S  €  7.540,00

Programmer price also includes

  • free technical support(hot line)
  • free life-time software via internet

The information in this document are subject to change without notice.

 Back to top
