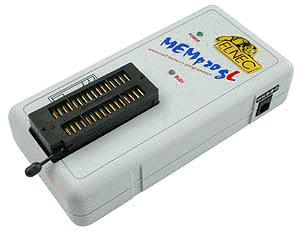

Universal memory programmer

• 10754 supported devices by 2.67 version of SW (Feb. 2010)
• small, fast and powerful programmer of EPROM, EEPROM, Flash EPROM, NVRAM and serial EEPROM
• DIL32 ZIF socket, memories in DIL package up to 32 pins are supported without adapters
• connection to PC - parallel (printer) port
• easy to use control program, Windows 98/Me/NT/2000/XP compatible
• free SW update, download from Internet
• power supply, cable and software included
• approved by CE laboratory to meet CE requirements

• socket converter

 Back to top

Features

GENERAL

• MEMprog is next member of Windows 95/98/ME/NT/2000/XP based ELNEC specialized programmers. Programmer is built to meet the demands of the development labs and field engineers for a specialized memory programmer.
• MEMprogL supports memory types up to 32 pins - EPROM, EEPROM, NVRAM, Flash EPROM and serial EEPROM - including low voltage types. MEMprogL isn't only a programmer, but also a static RAM tester.
• Provides very competitive price with excellent hardware design for reliable programming. Offer outstanding "value for money" in this class. Performance, dimensions and speed of MEMprogL can be utilized mainly in the maintenance.
• MEMprog interfaces with the IBM PC, 486 and above, portable or desktop personal computers through any parallel (printer) port.

 Back to top

HARDWARE

• The powerful TTL pindriver deliver signals without overshoot or ground bounce for all supported devices. Pin drivers provide TTL levels in the range suitable also for the low-voltage devices. Generators for supply voltage and programming voltage are digitally controlled in wide range of voltages.
• MEMprogL programmer performs programming verification at the marginal level of supply voltage, which, obviously, improves programming yield, and guarantees long data retention.
• Various socket converters are available to handle device in PLCC, SOIC, SSOP, TSSOP, TSOP and other packages.

 Back to top

SOFTWARE

• Programmer is driven by an easy-to-use control program with pull-down menus, hot keys and on-line help. Selecting of device is performed by its class, by manufacturer or simply by typing a fragment of vendor name and/or part number.
• Standard device-related commands (read, blank check, program, verify, erase) are enhanced by some test functions (insertion test, signature-byte check), and some special functions (autoincrement).
• All known data formats are supported. Automatic file format detection and conversion during load of file.
• The rich-featured autoincrement function enables to assign individual serial numbers to each programmed device - or simply increments a serial number, or the function enables to read serial numbers or any programmed device identification signatures from a file.
• The software also provide a many information about programmed device. As a special, the drawing of all available packages are provided. The software provide also explanation of chip labelling (the meaning of prefixes and suffixes at the chips) for each supported chip.

 Back to top

CARE FOR THE CUSTOMERS

• The support the most new memory devices requires only a software update due to the MEMprog hardware. With our prompt service you can have a new device added to the list of supported devices within hours! See AlgOR (Algorithm On Request) service for details.
• Free software updates are available by download from our WEB site.
• Keep-Current and AlgOR services, our next step to be customers satisfied.
  • Keep-Current service means, that ELNEC send off the latest version of programmer software and updated user documentation (Keep-Current package) to customer . A Keep-Current service is your hassle-free guarantee that you are doing the highest quality programming on ELNEC programmers, at minimal cost.
  • AlgOR (Algorithm On Request) service gives to the user tool to influence to amount and types of programmed devices as needed.

 Back to top

Specification

HARDWARE

Programmer

• two D/A converters for VCCP and VPP, controllable rise and fall time
• VCCP range 0..7V/350mA
• VPP range 0..25V/200mA

ZIF socket, pindriver

• 32-pin DIL ZIF (Zero Insertion Force) socket accepts both 300/600 mil devices up to 32-pins
• pindriver: TTL pindrivers and GND/VCC/VPP pindriver specialized for memory programming
• TTL driver provides level H also for support of low voltage devices

 Back to top

DEVICE SUPPORT

Programmer

• EPROM: NMOS/CMOS, 27xxx and 27Cxxx series, with 8 bit data width, full support of LV series (*1*2)
• EEPROM: NMOS/CMOS, 28xxx, 28Cxxx, 27EExxx series, with 8 bit data width, full support of LV series (*1*2)
• Flash EPROM: 28Fxxx, 29Cxxx, 29Fxxx, 29BVxxx, 29LVxxx, 29Wxxx, 49Fxxx series, with 8 bit data width, full support of LV series (*1*2)
• Serial E(E)PROM: 24Cxxx, 24Fxxx, 25Cxxx, 59Cxxx, 85xxx, 93Cxxx, full support of LV series(*1)
• NV RAM: Dallas DSxxx, SGS/Inmos MKxxx, SIMTEK STKxxx, XICOR 2xxx, ZMD U63x series

• (*1) - suitable adapters are available for non-DIL packages
• (*2) - there exist none adapter for devices with more than 32 pins. Therefore, please, consider a more powerful programmer (SmartProg/SmartProg2, LabProg+, BeeProg, JetProg), if you need to program memories with more than 32 pins

I.C. Tester

• Static RAM: 6116 .. 624000

Programming speed

 Back to top

SOFTWARE

Algorithm updates: software updates are available approx. every 2 weeks, free of charge.

Main features: revision history, session logging, on-line help, device and algorithm information.

Device operations

• standard:
  • intelligent device selection by device type, manufacturer or typed fragment of part name
  • blank check, read, verify
  • program
  • erase
  • configuration and security bit program
  • illegal bit test
  • checksum
• security
  • ID byte check
• special
  • auto device serial number increment
  • statistic
  • count-down mode

Buffer operations

• view/edit, find/replace
• fill, copy, move, byte swap, word/dword split
• checksum (byte, word)
• print

File load/save

• no download time because programmer is PC controlled
• automatic file type identification

  Supported file formats
  • unformatted (raw) binary
  • HEX: Intel, Intel EXT, Motorola S-record, MOS, Exormax, Tektronix, ASCII-SPACE-HEX

 Back to top

GENERAL

PC system requirements

• Common, software related requirements
• Programmer hardware related requirements:
  • one (parallel) printer port with nothing attached

Operation

• operating voltage 12..18V DC, max. 0.5A
• power consumption max. 6W active, about 0.5W sleep
• dimensions 137x65x40 [mm] (5.4x2.6x1.6 [inch])
• weight (without external power adapter) ca. 200g
• temperature 5°C ÷ 40°C (41°F ÷ 104°F)
• humidity 20%..80%, non condensing

Base configuration package includes

• MEMprogL programmer
• wall plug adapter, 12V/500mA, unstabilized
• connection cable PC-programmer
• user manual
• software
• registration card
• transport case

Additional services

• Keep Current - ELNEC sends to user a latest version of programmer software and updated user documentation (Keep-Current package)
• AlgOR (Algorithms On Request) - add new supported devices on customer request

Programmer price also includes

• free technical support (hot line)
• free life-time software update via Internet
