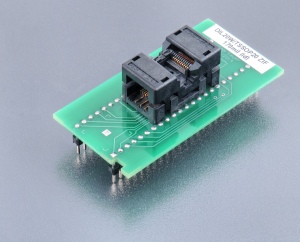

DIL20W/TSSOP20 ZIF 170mil (id)
Order No.: 70-0914A

universal adapter, assigned for TSSOP20 devices up to 20 pins (for example serial EEPROMs)
operation (mechanical) life of ZIF socket - 10.000 actuations
supported from PG4UW software version 3.31a

Ord. no. 70-0914A
Socket ZIF SSOP20, open top type
Bottom 2 rows, 2x24 pins, 0.6x0.6mm,  row spacing 600mil
Class Universal
Subclass DIL/(T)SSOP

Order no.: 70-0914A
Price:        € 119,00

Converter manual

  • Protect the contacts of adapter connectors and ZIF socket from contamination. Any dirt and/or fat on contacts may cause errors during programming.
  • Proceed with care! Incorrect insertion of adapter in programmer ZIF socket or device in adapter ZIF socket may lead to programmed device damage.
  • Insert converter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this converter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer
  • Push the top of adapter ZIF socket to open it. Insert the device into the adapter ZIF socket. The right position of the programmed device in adapter ZIF socket is show at picture near (mainly left above) the adapter ZIF socket. Then release adapter ZIF socket.
  • Visual check interconnection between device and converter ZIF socket. If everything looks OK, close it and now, device is ready for programming.
  • Be careful, because the incorrect insertion of converter to the device programmer ZIF socket or device to the converter ZIF socket can damage the programmed device.
  • When you finish work with adapter, remove it from the device programmer ZIF socket.
  • To take out the device, open converter ZIF socket and remove device from it.
  • When you finish work with converter, remove it from the programmer ZIF socket.
  • Do not directly touch the pins of the converter and converter ZIF socket, because dirt may cause errors during programming of device.
  • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.
  • If programming yields isn't 100% when using programming adapter or if some unreliability appears, try to connect one 22nF-100nF multilayer capacitor (that meet the EIA X7R or Z5U specification) between leads of adapter connected to pins VCC and GND pins of programmed chip.
  • For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

TSSOP20
