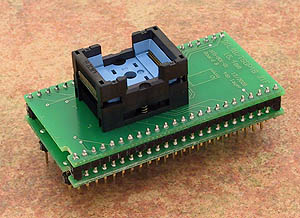

DIL48/TSOP48 ZIF 15.4mm
Order No.: 70-0315

universal adapter, assigned for devices in WSOP48/USOP48 package (for example FLASHs)
operation (mechanical) life of ZIF socket - 10.000 actuations

Ord. no. 70-0315
Socket ZIF WSOP48, open top type
Bottom 2 rows, 2x24 pins, 0.6x0.6mm,  row spacing 600mil
Class Universal
Subclass DIL/TSOP

Order no.: 70-0315
Price:        € 410,00

Converter manual

  • Insert converter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this converter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
  • Push the top of adapter ZIF socket to open it. Insert the device into the adapter ZIF socket. The right position of the programmed device in adapter ZIF socket is show at picture near (mainly left above) the adapter ZIF socket. Then release adapter ZIF socket.
  • Visual check interconnection between device and converter ZIF socket. If everything looks OK, close it and now, device is ready for programming.
  • Be careful, because the incorrect insertion of converter to the device programmer ZIF socket or device to the converter ZIF socket can damage the programmed device.
  • When you finish work with adapter, remove it from the device programmer ZIF socket.
  • To take out the device, open converter ZIF socket and remove device from it.
  • When you finish work with converter, remove it from the programmer ZIF socket.
  • Do not directly touch the pins of the converter and converter ZIF socket, because dirt may cause errors during programming of device.
  • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.
  • For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

WSOP48
