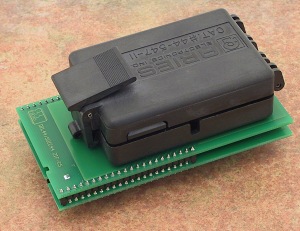

DIL44/SOIC44 ZIF-CS
Order No.: 70-0043

universal adapter assigned for SOIC/SOP/PSOP/TSOP devices up to 44 pins (for example EPROMs, FLASHs, SRAMs)
accepts SOIC gull wing and J lead devices on 50mil [1.27mm] lead pitch, body widths from 150mil to 600mil [from 3.81mm to 15.24mm]
operation (mechanical) life of ZIF socket - 25.000 actuations

Ord. no. 70-0043
Socket ZIF SOIC44, ClamShell type
Bottom 2 rows, 2x22 pins square, 0.6x0.6mm,  row spacing 600mil
Class Universal
Subclass DIL/SOIC

Move the cursor over the picture for additional view

Order no.: 70-0043
Price:        € 550,00

Converter manual

  • Protect the pins of adapter and adapter's ZIF socket from contamination. Don't touch the pins with bare hands. Any dirt and/or fat may cause errors during programming.
  • Usage of vacuum pick up tool is expected for device handling.
  • Proceed with care! Incorrect insertion of adapter in programmer's ZIF socket or device in adapter's ZIF socket may lead to programmed device damage.
  • Insert converter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this converter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
  • Open the converter ClamShell ZIF socket. Insert the device into it (place device on contacts). The right position of the programmed device in converter ZIF socket is show at picture near (mainly left above) the converter ZIF socket. On this picture reference corner (e.g. position of pin 1) of device is indicated by dot, by number 1, by bezel or by any combination of them.
  • Visual check interconnection between device and converter ClamShell ZIF socket. If everything looks OK, close it and now, device is ready for programming.
  • Be careful, because the incorrect insertion of converter to the device programmer ZIF socket or device to the converter ClamShell ZIF socket can damage the programmed device.
  • When you finish work with adapter, remove it from the device programmer ZIF socket.
  • To take out the device, open converter ClamShell ZIF socket and remove device from it.
  • When you finish work with converter, remove it from the programmer ZIF socket.
  • Do not directly touch the pins of the converter and converter ZIF socket, because dirt may cause errors during programming of device.
  • Operation conditions: operating temperature 5°C - 40°C (41°F - 104°F), operating humidity 20%...80%, non condensing.
  • For handling with the device we recommended to use a vacuum pick up tool.
  • The ZIF socket on the DIL44/SOIC44 ZIF-CS can accommodate the SOJ packages. A shim may be used for some devices to make up the difference in a device capture method between SOIC and SOJ package.
  • The shim should be between 0,5mm (0.019inch) and 0,6mm (0.023inch) thick and cut to the device body width and length. It should be affixed to the inside of the cover of the socket.

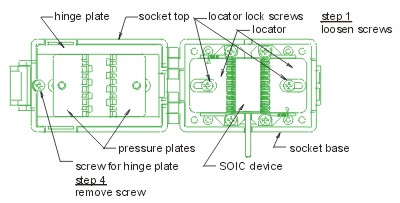

  • Loosen locator lock screws.
  • If you use this adapter for devices with less than 44 pins, then place device to the bottom edge of ClamShell ZIF socket. Upper contacts stay unconnected.

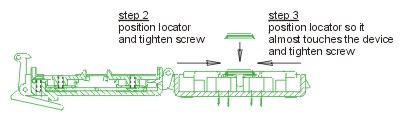

  • Slide one of the locators to a position that would place the device to be tested centrally on the contacts and tighten its lock screw.
  • Slide the second locator in until it almost touches the device. And tighten the locators lock screw. (Clearance is required for ease of loading and removal.)

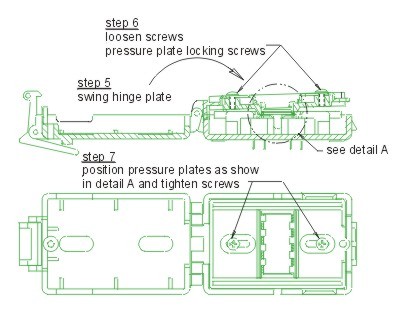

  • Remove screw for hinge plate.
  • Swing hinge plate up out of socket top.
  • Loosen preassure plate locking screws and slide them out.

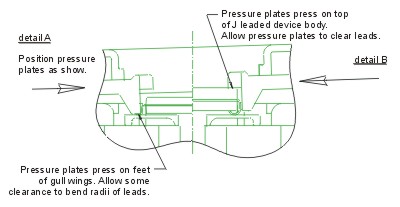

  • Position preassure plates so they will press down on the feet (part of lead that gets soldered to board) of a gull wing device (see detail A), if the device has J-leads position preassure plates to press down on top of device's body (see detail B) and tighten the locking screws. It is suggested to set hinge side first.
  • Swing hinge plate back into the socket top and tighten the screw for the hinge plate.
  • Double check your settings.
  • If programming yields isn't 100% when using programming adapter or if some unreliability appears, try to connect one 22nF-100nF multilayer capacitor (that meet the EIA X7R or Z5U specification) between leads of adapter connected to pins VCC and GND pins of programmed chip.

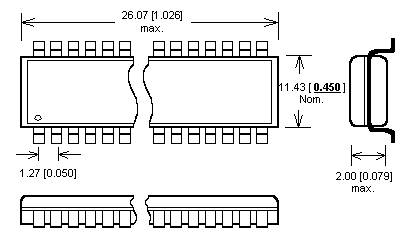

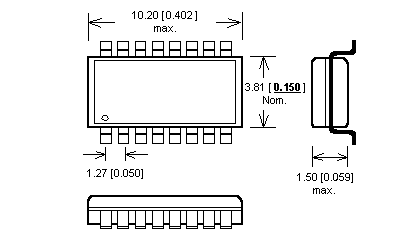

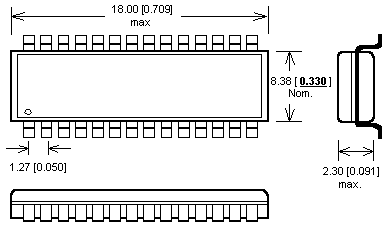

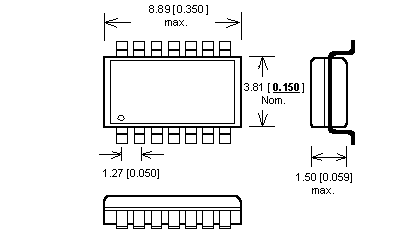

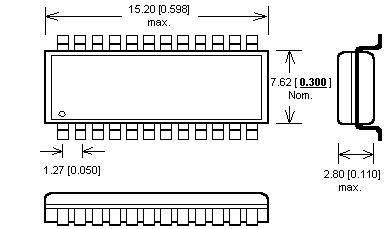

Accepted package(s)

SOIC8



SOIC8



SOIC14

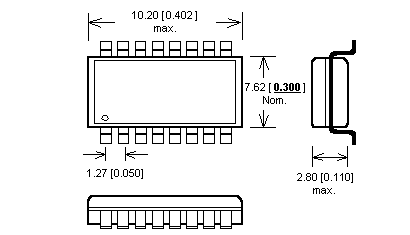

SOIC16



SOIC16



SOIC18

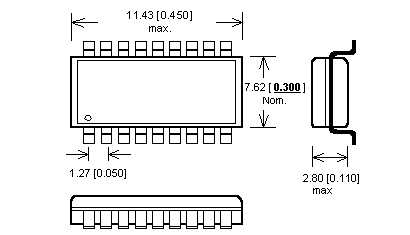

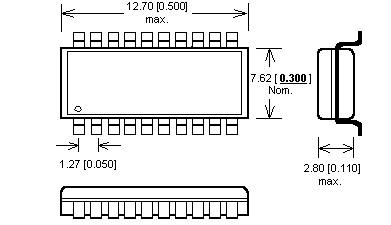

SOIC20



SOIC24



SOIC28



SOIC28



SOIC32



SOIC40

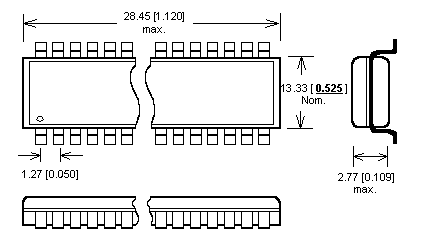

PSOP44
