DIL48/SDIP32-1 ZIF STM8-1
Order No.: 70-1170

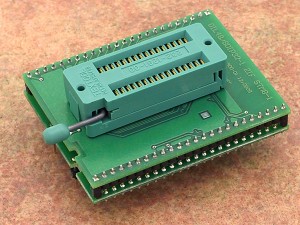

specialized adapter, assigned for STM8 family devices in SDIP32 package
operation (mechanical) life of ZIF socket - 20.000 actuations

Order no.: 70-1170
Price:        € 164,00

Converter manual

• Protect the pins of adapter and adapter's ZIF socket from contamination. Don't touch the pins with bare hands. Any dirt and/or fat may cause errors during programming.
• Usage of vacuum pick up tool is expected for device handling.
• Proceed with care! Incorrect insertion of adapter in programmer's ZIF socket or device in adapter's ZIF socket may lead to programmed device damage.
• Insert converter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this converter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
• Open the adapter ZIF socket by lever (lever is at upper position). Insert the device into the adapter ZIF socket. The right position of the programmed device in adapter ZIF socket is show at picture near (mainly left above) the adapter ZIF socket. Then release adapter ZIF socket.
• When you finish work with adapter, remove it from the device programmer ZIF socket.
• Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.

Accepted package(s)

SDIP32
