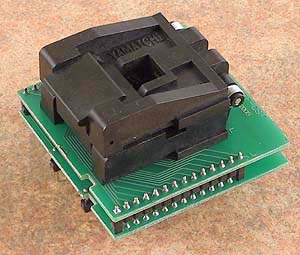

DIL28/PLCC28 ZIF-CS
Order No.: 70-0330

universal adapter, assigned for devices in PLCC28/LCC28 (for example SPLDs, PROMs, Philips/NXP LPC series, Zilog Z86xxx series) this adapter is designed for mass-production purposes support also LCC28 packages operation (mechanical) life of ZIF socket - 10.000 actuations

Ord. no. 70-0330
Socket ZIF PLCC28, ClamShell type
Bottom 2 rows, 2x14 pins square, 0.6x0.6mm,  row spacing 600mil
Class Universal
Subclass DIL/PLCC


Order no.: 70-0330
Price:        € 141,00

Converter manual

  • Insert converter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this converter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
  • Open the converter ClamShell ZIF socket. Insert the device into it (place device on contacts). The right position of the programmed device in converter ZIF socket is show at picture near (mainly left above) the converter ZIF socket. On this picture reference corner (e.g. position of pin 1) of device is indicated by dot, by number 1, by bezel or by any combination of them.
  • Visual check interconnection between device and converter ClamShell ZIF socket. If everything looks OK, close it and now, device is ready for programming.
  • Be careful, because the incorrect insertion of converter to the device programmer ZIF socket or device to the converter ClamShell ZIF socket can damage the programmed device.
  • When you finish work with adapter, remove it from the device programmer ZIF socket.
  • To take out the device, open converter ClamShell ZIF socket and remove device from it.
  • When you finish work with converter, remove it from the programmer ZIF socket.
  • Do not directly touch the pins of the converter and converter ZIF socket, because dirt may cause errors during programming of device.
  • The ZIF socket on the DIL28/PLCC28 ZIF-CS can accommodate the LCC28 package. A shim must be used to make up the difference in thickness between the PLCC and LCC packages. Therefore LCC thickness varies, the shim thickness will need to be determined for current LCC device by

    Shim thickness = 4,6 mm (0.181 inch) - LCC device thickness

    and cut to a size of 12mm (0.47inch) by 12mm (0.47inch). It should be affixed to the inside of the cover of the socket. Test close the socket, without a device, to confirm the shim does not interfere with the interlocking parts of the socket.
  • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.
  • If programming yields isn't 100% when using programming adapter or if some unreliability appears, try to connect one 22nF-100nF multilayer capacitor (that meet the EIA X7R or Z5U specification) between leads of adapter connected to pins VCC and GND pins of programmed chip.
  • For handling with the device we recommended to use a vacuum pick up tool.

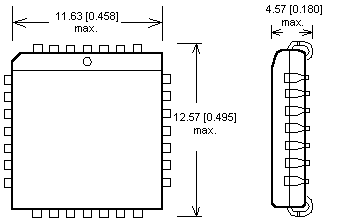

Accepted package(s)

PLCC28
