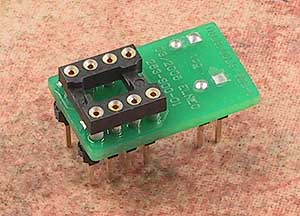

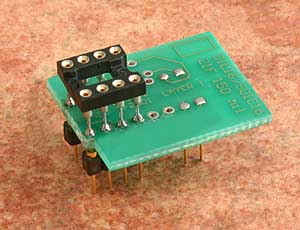

DIL8/DIL8 SEE-1
Order No.: 70-0253

specialized adapter for SEEPROM with rotate pinout (for using with universal adapter)
operation (mechanical) life of socket - 50 actuations

Ord. no. 70-0253
Socket DIL8
Bottom 2 rows, 2x4 pins (plus 2x 2 pins for improve stability), square, 0.6x0.6mm, rows spacing 300mil
Class Specialized
Subclass EPROM/Flash

Order no.: 70-0253
Price:        € 39,00

Wiring is:

DIL (top) 3 4 5 6 7 8 1 2
DIL (bottom) 1 2 3 4 5 6 7 8

Converter manual

  • Insert adapter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this adapter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
  • Insert the universal adapter into the adapter standard DIL socket withposition of pin 1 on the left up. Push the top of universal adapter ZIF socket to open it. Insert the device into the adapter ZIF socket. The right position of the programmed device in adapter ZIF socket is show at picture near (mainly left above) the adapter ZIF socket. Then release adapter ZIF socket.
  • Visual check interconnection between device and converter socket. If everything looks OK, device is ready for programming.
  • Be careful, because the incorrect insertion of adapter to the device programmer ZIF socket or universal adapter to this adapter or device to the universal adapter socket can damage the programmed device.
  • When you finish work with adapter, remove it from the device programmer ZIF socket.
  • Operation conditions: operating temperature 5°C - 40°C (41°F - 104°F), operating humidity 20%...80%, non condensing.
  • For handling with the device we recommended to use a vacuum pick up tool.
