BGA-Top-69 ZIF-CS
Order No.: 70-0521

top board of BGA adapters
used ZIF socket may accepts one or more variants of supported package, different in ball diameter, ball high and/or body thickness. The picture at Accepted package(s) section shows the range of all dimensions of BGA packages, which are accepted by this BGA-Top board
operation (mechanical) life of ZIF socket - 10.000 actuations

Ord. no. 70-0521
Socket ZIF BGA48, ClamShell type
Bottom 4 rows, 4x25 pins square, 0.6x0.6mm
Class BGA/LGA
Subclass BGA-Top

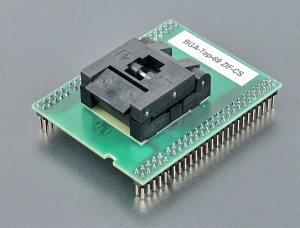

Move the cursor over the picture for additional view

Order no.: 70-0521
Price:        € 310,00

Adapter manual

  • Protect the pins of adapter and adapter's ZIF socket from contamination. Don't touch the pins with bare hands. Any dirt and/or fat may cause errors during programming.
  • Usage of vacuum pick up tool is expected for device handling.
  • Proceed with care! Incorrect insertion of adapter in programmer's ZIF socket or device in adapter's ZIF socket may lead to programmed device damage.
  • For work with BGA device it is necessary put together BGA-Top-69 ZIF-CS with some BGA-Bottom-x board according to the information provided by PG4UW software.
  • The picture show, how to put together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards to have complete BGA adapter.
  • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.
  • For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

BGA package



NAME

SYMBOL MIN NOM MAX

Profile

A 1 - 1.2

Ball Height

A1 0.3 - 0.4

Body Thickness

A2 - - -

Ball Diameter

b 0.4 - 0.5

Body Size

D 7.8 8 8.2

Body Size

E 5.8 6 6.2

Ball Pitch

e - 0.8 -

Ball Array D

GD - 8 -

Ball Array E

GE - 6 -

NAME

SYMBOL MIN NOM MAX

Profile

A 1 1.1 1.2

Ball Height

A1 0.3 0.35 0.4

Body Thickness

A2 - - -

Ball Diameter

b 0.4 0.45 0.5

Body Size

D 7.8 8 8.2

Body Size

E 5.8 6 6.2

Ball Pitch

e - 0.8 -

Ball Array D

GD - 8 -

Ball Array E

GE - 6 -

NAME

SYMBOL MIN NOM MAX

Profile

A 0.95 - 1.2

Ball Height

A1 0.28 - 0.48

Body Thickness

A2 - - -

Ball Diameter

b 0.35 - 0.55

Body Size

D 7.8 8 8.2

Body Size

E 5.8 6 6.2

Ball Pitch

e - 0.8 -

Ball Array D

GD - 8 -

Ball Array E

GE - 6 -

NAME

SYMBOL MIN NOM MAX

Profile

A - - 1.2

Ball Height

A1 0.25 - 0.45

Body Thickness

A2 - - -

Ball Diameter

b 0.3 - 0.5

Body Size

D 7.8 8 8.2

Body Size

E 5.8 6 6.2

Ball Pitch

e - 0.8 -

Ball Array D

GD - 8 -

Ball Array E

GE - 6 -

NAME

SYMBOL MIN NOM MAX

Profile

A - - 1.2

Ball Height

A1 0.25 0.35 0.45

Body Thickness

A2 - - -

Ball Diameter

b 0.3 0.4 0.5

Body Size

D 8.8 9 9.2

Body Size

E 7.8 8 8.2

Ball Pitch

e - 0.8 -

Ball Array D

GD - 8 -

Ball Array E

GE - 6 -

NAME

SYMBOL MIN NOM MAX

Profile

A 1.2 1.3 1.4

Ball Height

A1 0.3 0.35 0.4

Body Thickness

A2 - - -

Ball Diameter

b 0.4 0.45 0.5

Body Size

D 7.8 8 8.2

Body Size

E 5.8 6 6.2

Ball Pitch

e - 0.8 -

Ball Array D

GD - 8 -

Ball Array E

GE - 6

NAME

SYMBOL MIN NOM MAX

Profile

A 0.95 1.2 1.5

Ball Height

A1 0.28 0.38 0.48

Body Thickness

A2 - - -

Ball Diameter

b 0.35 0.45 0.55

Body Size

D 8.8 9 9.2

Body Size

E 7.8 8 8.2

Ball Pitch

e - 0.8 -

Ball Array D

GD - 8 -

Ball Array E

GE - 6 -

NAME

SYMBOL MIN NOM MAX

Profile

A 0.95 1.08 1.2

Ball Height

A1 0.28 0.38 0.48

Body Thickness

A2 - - -

Ball Diameter

b 0.4 0.45 0.5

Body Size

D 7.8 8 8.2

Body Size

E 5.8 6 6.2

Ball Pitch

e - 0.8 -

Ball Array D

GD - 8 -

Ball Array E

GE - 6 -

NAME

SYMBOL MIN NOM MAX

Profile

A - - 1.2

Ball Height

A1 0.3 0.35 0.4

Body Thickness

A2 - - -

Ball Diameter

b 0.42 0.45 0.48

Body Size

D 8 8 8.2

Body Size

E 6 6 6.2

Ball Pitch

e - 0.8 -

Ball Array D

GD - 8 -

Ball Array E

GE - 6 -

NAME

SYMBOL MIN NOM MAX

Profile

A - - 1.2

Ball Height

A1 0.28 0.33 0.38

Body Thickness

A2 - - -

Ball Diameter

b 0.42 0.47 0.52

Body Size

D - 8 -

Body Size

E - 6 -

Ball Pitch

e - 0.8 -

Ball Array D

GD - 8 -

Ball Array E

GE - 6 -

NAME

SYMBOL MIN NOM MAX

Profile

A - - 1.2

Ball Height

A1 0.27 - 0.37

Body Thickness

A2 - - -

Ball Diameter

b 0.38 - 0.48

Body Size

D - 8 -

Body Size

E - 6 -

Ball Pitch

e - 0.8 -

Ball Array D

GD - 8 -

Ball Array E

GE - 6 -

NAME

SYMBOL MIN NOM MAX

Profile

A - - 1.2

Ball Height

A1 0.27 0.32 0.37

Body Thickness

A2 - 0.79 -

Ball Diameter

b 0.35 0.4 0.45

Body Size

D 7.9 8 8.1

Body Size

E 5.9 6 6.1

Ball Pitch

e - 0.8 -

Ball Array D

GD - 8 -

Ball Array E

GE - 6 -

NAME

SYMBOL MIN NOM MAX

Profile

A 1 1.1 1.2

Ball Height

A1 0.3 0.35 0.4

Body Thickness

A2 - - -

Ball Diameter

b 0.4 0.45 0.5

Body Size

D 7.9 8 8.1

Body Size

E 5.9 6 6.1

Ball Pitch

e - 0.8 -

Ball Array D

GD - 8 -

Ball Array E

GE - 6 -

NAME

SYMBOL MIN NOM MAX

Profile

A 1.2 - 1.4

Ball Height

A1 0.3 - 0.4

Body Thickness

A2 - - -

Ball Diameter

b 0.4 - 0.5

Body Size

D 7.8 8 8.2

Body Size

E 5.8 6 6.2

Ball Pitch

e - 0.8 -

Ball Array D

GD - 8 -

Ball Array E

GE - 6 -
