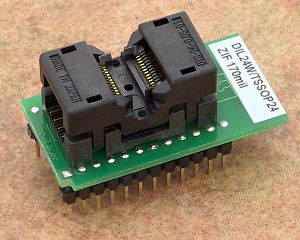

Converter
DIL24W/TSSOP24 ZIF 170 mil
- universal converter, assigned for all TSSOP
devices up to 24 pins (e.g. serial EEPROMs), 170mil
body width.
- socket: ZIF TSSOP24, open top type
- bottom: 2 rows, 2x 12 pins, round, diameter 0.45mm, rows spacing
600mil
- operation (mechanical) life of ZIF socket - 10.000 actuations
- Order no.: 70-0915
- Price: €
119,00
|
|
|
|
Converter
manual
- Insert converter to
the device programmer ZIF socket according to the
picture placed near of it. If you have some doubts
about orientation of this converter in device
programmer ZIF socket, it is valid general rule,
the orientation of the text of title is the same
as the text on the top of the device programmer.
- Push the top of
converter ZIF socket to open it. Insert the device
into the converter ZIF socket. The right position
of the programmed device in converter ZIF socket
is show at picture near (mainly left above) the
converter ZIF socket. Then release converter ZIF
socket. If you use this converter for devices with
less than 24 pins, then place device to the bottom
edge of converter ZIFsocket. Upper contacts stay
unconnected.
- Visually check
interconnection between device and converter ZIF
socket. If everything looks OK, the device is
ready for programming.
- Be careful, because
the incorrect insertion of converter to the device
programmer ZIF socket or device to the converter
ZIF socket can damage the programmed device.
- To take out the
device push the top of converter ZIF socket and
remove device from it.
- When you finish work
with converter, remove it from the device
programmer ZIF socket.
- Do not directly
touch the pins of the converter and converter ZIF
socket, because dirt may cause errors during
programming of device.
- For handling with
the device we recommended to use a vacuum
pick up tool.
|
|
Accepted package(s)
|
| TSSOP8 |
 |
|
|
|
| TSSOP14 |
|
|
|
|
|

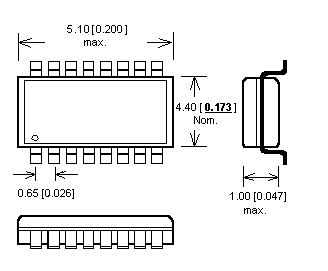

TSSOP16
|
|
|
|
|
|
TSSOP20 |
|
|
|
|

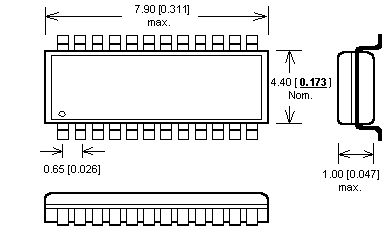

TSSOP24 |
 |
|
|
|
|
|
|
