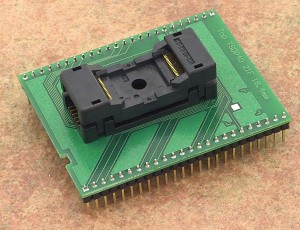

top board of TSOP40 adapters (mainly FLASH EPROM with 40-pins)
operation (mechanical) life of ZIF socket - 10.000 actuations
||ZIF TSOP40, open top type
||2 rows, 2x24 pins square, 0.6x0.6mm, row spacing 600mil
- Protect the pins of adapter and adapter's ZIF
socket from contamination. Don't touch the pins with
bare hands. Any dirt and/or fat may cause errors
- Usage of
vacuum pick up
tool is expected for device handling.
- Proceed with care! Incorrect insertion of
adapter in programmer's ZIF socket or device in
adapter's ZIF socket may lead to programmed device
- For work with TSOP40 device
it is necessary put together Top TSOP40 ZIF 18.4mm
with some Bottom TSOP40-x board according to the
information provided by PG4UW software.
- Insert comlete adapter to
the device programmer ZIF socket according to the
picture placed near of it. If you have some doubts
about orientation of this adapter in device
programmer ZIF socket, it is valid general rule, the
orientation of the text of title is the same as the
text on the top of the device programmer.
- Push the top of adapter ZIF
socket to open it. Insert the device into the
adapter ZIF socket. The right position of the
programmed device in adapter ZIF socket is show at
picture near (mainly left above) the adapter ZIF
socket. Then release adapter ZIF socket.
- Do not press on device
while inserting it and/or releasing the cover.
- Visual check interconnection between device and
converter ZIF socket. If everything looks
OK, close it and now, device is ready for
- To take out the device
from adapter, push the cover of adapter's ZIF socket
and remove the device.
- When you finish work with adapter, remove it from
the device programmer ZIF socket.
- Operation conditions: operating temperature 5°C
40°C (41°F - 104°F), operating humidity 20%...80%,
- For handling with the device we recommended to use a
vacuum pick up
The information in this document are subject to
change without notice.
