Converter manual

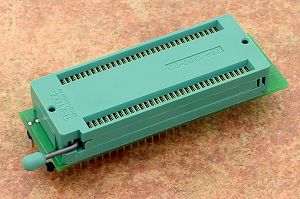

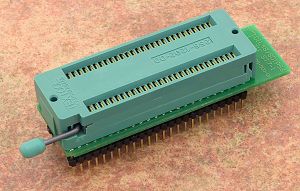

• Insert converter to the programmer ZIF socket according to the picture placed near of it. Open the converter ZIF socket by lever (lever is at upper position). Insert the device into it according to the picture placed near of it and close converter ZIF socket by lever (lever is at lower position).

• Visually check interconnection between device and converter ZIF socket. If everything looks OK, the device is ready for programming.
• Be careful, because the incorrect insertion of converter to the programmer ZIF socket or device to the converter ZIF socket can damage the programmed device.
• To take out the device open the converter ZIF socket by lever (lever is at upper position) and remove device from it.
• When you finish work with converter, remove it from the programmer ZIF socket.
• Do not directly touch the pins of the converter and converter ZIF socket, because dirt may cause errors during programming of device.

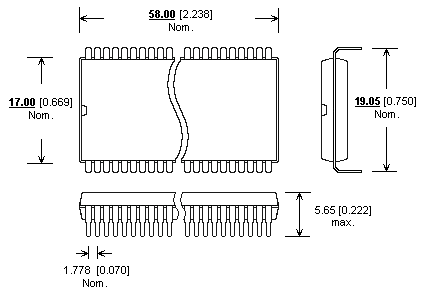

Accepted package(s)
