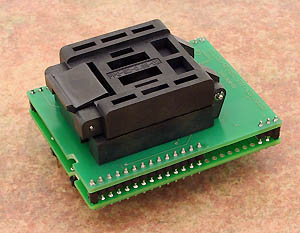

Converter
DIL28/QFP52 ZIF-CS SX52
- special converter, assigned for Ubicom SX52BD
in PQFP52 package
- accessory for JetProg,
BeeProg, LabProg+,
LabProg-48LV, SmartProg, SmartProg2 and
PIKprog
- operation (mechanical) life of ZIF socket - 10.000 actuations
- socket: ZIF QFP52, ClamShell type
- bottom: 2 rows, 2x 14
pins, square, 0.6x0.6mm, rows
spacing
600mil
- Order no.: 70-0268
- Price: € 245,00
|
|
|
Converter manual
-
Insert converter to the programmer
ZIF socket according to the picture placed near of it.
Open the converter ClamShell ZIF socket. Insert the
device into it (place device on contacts) according to
the picture placed near of it.
-
Visually check interconnection
between device and converter ClamShell ZIF socket. If
everything looks OK, close it and now, device is ready
for programming.
-
Be careful, because the incorrect
insertion of converter to the programmer ZIF socket or
device to the converter ClamShell ZIF socket can
damage the programmed device.
-
To take out the
device, open
converter ClamShell ZIF socket and remove device from
it.
-
When you finish work with
converter, remove it from the programmer ZIF socket.
-
Do not directly touch the pins of
the converter and converter ZIF socket, because dirt
may cause errors during programming of device.
-
For handling with the device we
recommended to use a vacuum pick up
tool.
|
|

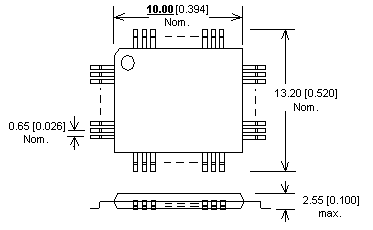

Accepted package(s)
|
| PQFP52 |
 |
|
|
|
|
