Converter manual

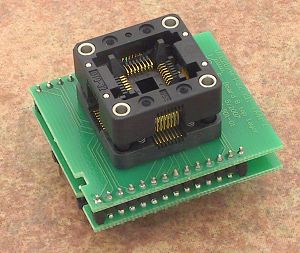

• Insert converter to the programmer ZIF socket according to the picture placed near of it. Open the converter ClamShell ZIF socket. Insert the device into it (place device on contacts). The right position of the programmed device in converter ZIF socket is show at picture near (mainly left above) the converter ZIF socket.

• Visually check interconnection between device and converter  ZIF socket. If everything looks OK, close it and now, device is ready for programming.
• Be careful, because the incorrect insertion of converter to the programmer ZIF socket or device to the converter ClamShell ZIF socket can damage the programmed device.
• To take out the device, open converter ZIF socket and remove device from it.
• When you finish work with converter, remove it from the programmer ZIF socket.
• Do not directly touch the pins of the converter and converter ZIF socket, because dirt may cause errors during programming of device.
• For handling with the device we recommended to use a vacuum pick up tool.
• Connection table
• J4 – pin 6 connect through jumper to pin 4 of QFP32
• J5 – pin 3 connect through jumper to pin 5 of QFP32
• NC - not connected

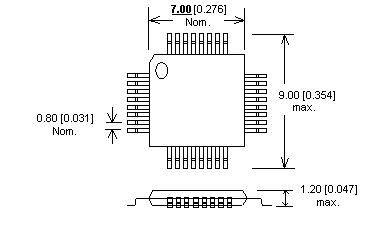

Accepted package(s)
