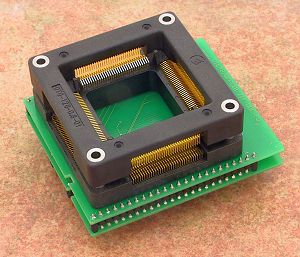

DIL48/QFP128 ZIF UOC-FU

  • special converter, assigned for Philips UOCIIIN processors (face up type) in QFP128 package
  • operation (mechanical) life of ZIF socket - 10.000 actuations
  • Socket: ZIF QFP128, open top type
  • Bottom: 2 rows, 2x24 pins, Square, 0,6x0,6mm, rows spacing 600mil
  • Order no.: 70-0507
  • Price: €  439,00

Converter manual

  • Insert converter to the programmer ZIF socket according to the picture placed near of it. Push the top of converter ZIF socket to open it. Insert the device into it according to the picture placed near of it and release converter ZIF socket.

  • Visually check interconnection between device and converter ZIF socket. If everything looks OK, the device is ready for programming.
  • Be careful, because the incorrect insertion of converter to the programmer ZIF socket or device to the converter ZIF socket can damage the programmed device.
  • To take out the device push the top of converter ZIF socket and remove device from it.
  • When you finish work with converter, remove it from the programmer ZIF socket.
  • Do not directly touch the pins of the converter and converter ZIF socket, because dirt may cause errors during programming of device.
  • For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)
QFP128
