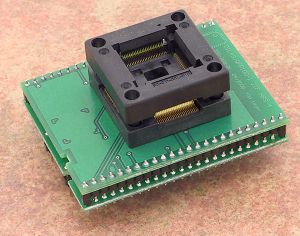

Converter
DIL48/QFP100-1 ZIF H8S-4
- special converter, assigned for Renesas
(Hitachi) H8S/2149, H8S/2148, H8S/2147, H8S/2145,
H8S/2142, H8S/2141, H8S/2110 in QFP100
package
- Socket: ZIF QFP100,
open top type
- operation
(mechanical) life of ZIF socket - 10.000 actuations
- Bottom: 2 rows, 2x24
pins, Square, 0,6x0,6mm, rows spacing 600mil
- Order no.: 70-0952
- Price: €
280,00
|
|
|
Converter manual
-
Insert converter to the programmer
ZIF socket according to the picture placed near of it.
Push the top of converter ZIF socket to open it.
Insert the device into it according to the picture
placed near of it and release converter ZIF socket.
-
Visually check interconnection
between device and converter ZIF socket. If everything
looks OK, the device is ready for programming.
-
Be careful, because the incorrect
insertion of converter to the programmer ZIF socket or
device to the converter ZIF socket can damage the
programmed device.
-
To take out the device push the top
of converter ZIF socket and remove device from
it.
-
When you finish work with
converter, remove it from the programmer ZIF socket.
-
Do not directly touch the pins of
the converter and converter ZIF socket, because dirt
may cause errors during programming of device.
-
For handling with the device we
recommended to use a vacuum pick up
tool.
|
|
Accepted package(s)
|
| QFP100 |
 |
|
|
|
|
