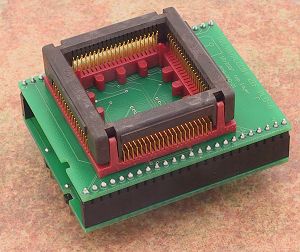

Converter
DIL48/PLCC84 ZIF PLD-6
- special converter, assigned for programming
Altera EPM9320/A, EPM9400 with JAM/SVF support in PLCC84 package
- operation (mechanical) life of ZIF socket - 10.000
actuations
- socket: ZIF PLCC84,
open top type
- bottom: 2 rows, 2x 24
pins, square, 0.6x0.6mm, rows spacing 600mil
- Order no.: 70-0828
- Price: €
|
|
|
Converter Manual
- Insert converter to
the device programmer ZIF socket according to the
picture placed near of it. If you have some doubts
about orientation of this converter in device
programmer ZIF socket, it is valid general rule,
the orientation of the text of title is the same
as the text on the top of the device programmer.
- Push the top of
converter ZIF socket to open it. Insert the device
into the converter ZIF socket. The right position
of the programmed device in converter ZIF socket
is show at picture near (mainly left above) the
converter ZIF socket. Then release converter ZIF
socket.
- Visually check
interconnection between device and converter ZIF
socket. If everything looks OK, the device is
ready for programming.
- Be careful, because
the incorrect insertion of converter to the device
programmer ZIF socket or device to the converter
ZIF socket can damage the programmed device.
- To take out the
device push the top of converter ZIF socket and
remove device from it.
- When you finish work
with converter, remove it from the device
programmer ZIF socket.
- Do not directly
touch the pins of the converter and converter ZIF
socket, because dirt may cause errors during
programming of device.
- For handling with
the device we recommended to use a vacuum
pick up tool.
|
|
Accepted package(s)
|
| PLCC84 |
 |
|
|
|
|
