Module manual

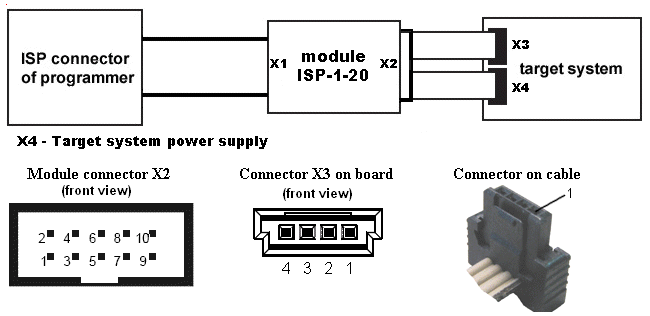

• Connect module with programmer and target system according to picture at bottom page.

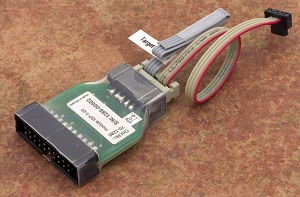

• Package also contain cable with ERNI connector, to connect to target system.
• Descrition of Module ISP-1-20 connector pins (X2):
•   1 - Target VCC check only
•   2 - communication pin - for example SWIM
•   3 - GND (VSS)
•   4 - Reset
•   5 - GND (VSS)
•   6 - GND (VSS)
•   7 - GND (VSS)
•   8 - GND (VSS)
•   9 - Target system power supply *1
•  10 - Target system power supply *1
• Description of communication pins:
•   1 - Target VCC check only
•   2 - communication pin
•  GND (VSS)
•   4 - Reset
• Notes:
• *1 Programmer can provide a power supply for the target system.

Connection details
