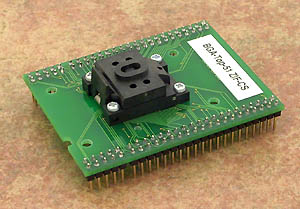

BGA-Top-51a ZIF-CS
Order No.: 70-0417A

top board of BGA adapters
used ZIF socket may accepts one or more variants of supported package, different in ball diameter, ball high and/or body thickness. The picture at Accepted package(s) section shows the range of all dimensions of BGA packages, which are accepted by this BGA-Top board
operation (mechanical) life of ZIF socket - 500.000 actuations

Order no.: 70-0417A
Price:        € 470,00

Adapter manual

• Protect the pins of adapter and adapter's ZIF socket from contamination. Don't touch the pins with bare hands. Any dirt and/or fat may cause errors during programming.
• Usage of vacuum pick up tool is expected for device handling.
• Proceed with care! Incorrect insertion of adapter in programmer's ZIF socket or device in adapter's ZIF socket may lead to programmed device damage.
• For work with BGA device it is necessary put together BGA-Top-51a ZIF-CS with some BGA-Bottom-x board according to the information provided by PG4UW software.
• The picture show, how to put together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards to have complete BGA adapter.
• Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.
• For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

BGA package

NAME SYMBOL MIN NOM MAX Profile A 1.2 1.3 1.4 Ball Height A1 0.27 0.32 0.37 Body Thickness A2 - - - Ball Diameter b 0.4 0.45 0.5 Body Size D 12.9 13 13.1 Body Size E 10.4 10.5 10.6 Ball Pitch e - 0.8 - Ball Array D GD   14   Ball Array E GE   10

NAME SYMBOL MIN NOM MAX Profile A 1 1.1 1.2 Ball Height A1 0.27 0.32 0.37 Body Thickness A2 - - - Ball Diameter b 0.4 0.45 0.5 Body Size D 12.9 13 13.1 Body Size E 10.4 10.5 10.6 Ball Pitch e - 0.8 - Ball Array D GD - 14 - Ball Array E GE - 10 -

NAME SYMBOL MIN NOM MAX Profile A 1.03 1.13 1.2 Ball Height A1 0.22 0.27 0.32 Body Thickness A2 0.65 0.66 0.67 Ball Diameter b 0.4 0.45 0.5 Body Size D 12.9 13 13.1 Body Size E 10.4 10.5 10.6 Ball Pitch e - 0.8 - Ball Array D GD - 14 - Ball Array E GE - 10 -

NAME SYMBOL MIN NOM MAX Profile A - - 1.2 Ball Height A1 0.25 - - Body Thickness A2 - 0.8 - Ball Diameter b 0.4 0.45 0.5 Body Size D 12.9 13 13.1 Body Size E 10.4 10.5 10.6 Ball Pitch e - 0.8 - Ball Array D GD - 14 - Ball Array E GE - 10 -

NAME SYMBOL MIN NOM MAX Profile A - - 1.2 Ball Height A1 0.21 0.26 0.31 Body Thickness A2 - - - Ball Diameter b 0.4 0.45 0.5 Body Size D - 13 - Body Size E - 10.5 - Ball Pitch e - 0.8 - Ball Array D GD - 14 - Ball Array E GE - 10 -

NAME SYMBOL MIN NOM MAX Profile A - - 1.2 Ball Height A1 0.22 0.27 0.32 Body Thickness A2 - - - Ball Diameter b 0.4 0.45 0.5 Body Size D 12.9 13 13.1 Body Size E 10.4 10.5 10.6 Ball Pitch e - 0.8 - Ball Array D GD - 14 - Ball Array E GE - 10 -

NAME SYMBOL MIN NOM MAX Profile A - - 1.4 Ball Height A1 0.21 0.26 0.31 Body Thickness A2 - - - Ball Diameter b 0.4 0.45 0.5 Body Size D - 13 - Body Size E - 10.5 - Ball Pitch e - 0.8 - Ball Array D GD - 14 - Ball Array E GE - 10 -

NAME SYMBOL MIN NOM MAX Profile A 1.07 1.14 1.21 Ball Height A1 0.35 0.4 0.45 Body Thickness A2 - - - Ball Diameter b 0.45 0.5 0.55 Body Size D 12.9 13 13.1 Body Size E 10.4 10.5 10.6 Ball Pitch e - 0.8 - Ball Array D GD - 14 - Ball Array E GE - 10 -

NAME SYMBOL MIN NOM MAX Profile A - - 1.2 Ball Height A1 0.25 - - Body Thickness A2 0.84 0.85 0.86 Ball Diameter b - 0.45 - Body Size D 12.9 13 13.1 Body Size E 10.4 10.5 10.6 Ball Pitch e - 0.8 - Ball Array D GD - 14 - Ball Array E GE - 10 -

NAME SYMBOL MIN NOM MAX Profile A - - 1.2 Ball Height A1 0.3 0.35 0.4 Body Thickness A2 - - - Ball Diameter b 0.4 0.45 0.5 Body Size D 12.9 13 13.1 Body Size E 10.4 10.5 10.6 Ball Pitch e - 0.8 - Ball Array D GD - 14 - Ball Array E GE - 10 -
