Converter

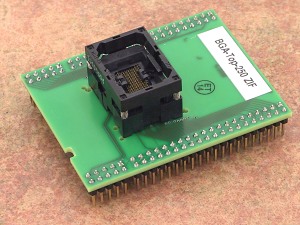

BGA-Top-250 ZIF
- top board of BGA converters
- ZIF socket accepts many variations of BGA packages, that differ in ball
diameter, ball width
and package thickness.
- The picture at Accepted package(s) section
shows the range of all dimensions of BGA packages,
which are accepted by this BGA-Top board.
- operation (mechanical) life of ZIF socket -
10.000 actuations
- socket: ZIF BGA107, open top type
- bottom: 4 rows, 4x25 pins, square,
0.6x0.6mm
- Order no.:
70-1462
- Price: € 310,00
|
|
|
Converter manual
- For work with BGA device it is
necessary put together BGA-Top-240 ZIF with some
BGA-Bottom-x board according to the information
provided by PG4UW software.
- The top cover must be fully
actuated (depressed) before inserting a package into
the socket.
- Once fully actuated, drop the
package into the socket from a height of 2 to 3mm
above the seating plane.
- Do not push package while loading
or releasing the lid.
- Do not directly touch the pins of
the converter, because dirt may cause errors during
programming of device.
- The picture show, how to put
together the BGA-Top-x ZIF-CS and BGA-Bottom-x
boards to have complete BGA converter
- For handling with the
device we recommended to use a
vacuum pipette pick up tool.
|
|
Accepted package(s)
|
|
BGA
package
|
 |
|
|
|
|
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
1.21 |
1.3 |
1.4 |
|
Ball Height
|
A1 |
0.27 |
0.32 |
0.37 |
|
Ball Thickness
|
A2 |
- |
- |
- |
|
Ball Diameter
|
b |
0.4 |
0.45 |
0.5 |
|
Body Size
|
D |
12.9 |
13 |
13.1 |
|
Body Size
|
E |
10.4 |
10.5 |
10.6 |
|
Ball Pitch
|
e |
- |
0.8 |
- |
|
Ball Array D
|
GD |
- |
14 |
- |
|
Ball Array E
|
GE |
- |
10 |
- |
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
1 |
1.1 |
1.2 |
|
Ball Height
|
A1 |
0.27 |
0.32 |
0.37 |
|
Ball Thickness
|
A2 |
- |
- |
- |
|
Ball Diameter
|
b |
0.4 |
0.45 |
0.5 |
|
Body Size
|
D |
12.9 |
13 |
13.1 |
|
Body Size
|
E |
10.4 |
10.5 |
10.6 |
|
Ball Pitch
|
e |
- |
0.8 |
- |
|
Ball Array D
|
GD |
- |
14 |
- |
|
Ball Array E
|
GE |
- |
10 |
- |
|
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
- |
- |
1.2 |
|
Ball Height
|
A1 |
0.25 |
- |
- |
|
Ball Thickness
|
A2 |
- |
0.8 |
- |
|
Ball Diameter
|
b |
0.4 |
0.45 |
0.5 |
|
Body Size
|
D |
12.9 |
13 |
13.1 |
|
Body Size
|
E |
10.4 |
10.5 |
10.6 |
|
Ball Pitch
|
e |
- |
0.8 |
- |
|
Ball Array D
|
GD |
- |
14 |
- |
|
Ball Array E
|
GE |
- |
10 |
- |
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
- |
- |
1.2 |
|
Ball Height
|
A1 |
0.21 |
0.26 |
0.31 |
|
Ball Thickness
|
A2 |
- |
- |
- |
|
Ball Diameter
|
b |
0.4 |
0.45 |
0.5 |
|
Body Size
|
D |
- |
13 |
- |
|
Body Size
|
E |
- |
10.5 |
- |
|
Ball Pitch
|
e |
- |
0.8 |
- |
|
Ball Array D
|
GD |
- |
14 |
- |
|
Ball Array E
|
GE |
- |
10 |
- |
|
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
- |
- |
1.2 |
|
Ball Height
|
A1 |
0.22 |
0.27 |
0.32 |
|
Ball Thickness
|
A2 |
- |
- |
- |
|
Ball Diameter
|
b |
0.4 |
0.45 |
0.5 |
|
Body Size
|
D |
12.9 |
13 |
13.1 |
|
Body Size
|
E |
10.4 |
10.5 |
10.6 |
|
Ball Pitch
|
e |
- |
0.8 |
- |
|
Ball Array D
|
GD |
- |
14 |
- |
|
Ball Array E
|
GE |
- |
10 |
- |
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
- |
- |
1.4 |
|
Ball Height
|
A1 |
0.21 |
0.26 |
0.31 |
|
Ball Thickness
|
A2 |
- |
- |
- |
|
Ball Diameter
|
b |
0.4 |
0.45 |
0.5 |
|
Body Size
|
D |
- |
13 |
- |
|
Body Size
|
E |
- |
10.5 |
- |
|
Ball Pitch
|
e |
- |
0.8 |
- |
|
Ball Array D
|
GD |
- |
14 |
- |
|
Ball Array E
|
GE |
- |
10 |
- |
|
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
- |
- |
1.2 |
|
Ball Height
|
A1 |
0.25 |
- |
- |
|
Ball Thickness
|
A2 |
0.84 |
0.85 |
0.86 |
|
Ball Diameter
|
b |
- |
0.45 |
- |
|
Body Size
|
D |
12.9 |
13 |
13.1 |
|
Body Size
|
E |
10.4 |
10.5 |
10.6 |
|
Ball Pitch
|
e |
- |
0.8 |
- |
|
Ball Array D
|
GD |
- |
14 |
- |
|
Ball Array E
|
GE |
- |
10 |
- |
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
- |
- |
1.2 |
|
Ball Height
|
A1 |
0.3 |
0.35 |
0.4 |
|
Ball Thickness
|
A2 |
- |
- |
- |
|
Ball Diameter
|
b |
0.4 |
0.45 |
0.5 |
|
Body Size
|
D |
12.9 |
13 |
13.1 |
|
Body Size
|
E |
10.4 |
10.5 |
10.6 |
|
Ball Pitch
|
e |
- |
0.8 |
- |
|
Ball Array D
|
GD |
- |
14 |
- |
|
Ball Array E
|
GE |
- |
10 |
- |
|
|
