Converter

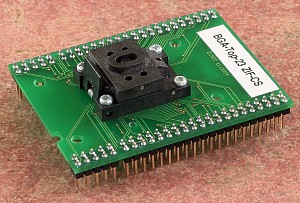

BGA-Top-23 ZIF-CS

top board of BGA converters
ZIF socket accepts many variations of BGA packages, that differ in ball diameter, ball width and package thickness.
The picture at Accepted package(s) section shows the range of all dimensions of BGA packages, which are accepted by this BGA-Top board.
operation (mechanical) life of ZIF socket - 500.000 actuations
socket: ZIF BGA64, (accept package up to 64 balls), ClamShell type
bottom: 4 rows, 4x25 pins, square, 0.6x0.6mm
order no.: 70-0311
Price: € 430,00

Converter manual

For work with BGA device it is necessary put together BGA-Top-23 ZIF-CS with some BGA-Bottom-x board according to the information provided by PG4UW software.
Do not directly touch the pins of the converter, because dirt may cause errors during programming of device.
For handling with the device we recommended to use a vacuum pipette pick up tool.
The picture show, how to put together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards to have complete BGA converter.

Accepted package(s)

BGA package

NAME	SYMBOL	MIN	NOM	MAX
Profile	A	-	-	1.2
Ball Height	A1	0.2	-	-
Ball Thickness	A2	0.81	-	0.97
Ball Diameter	b	0.35	0.4	0.45
Body Size	D	-	9	-
Body Size	E	-	7	-
Ball Pitch	e	-	0.8	-
Ball Array D	GD	-	8	-
Ball Array E	GE	-	9	-

NAME	SYMBOL	MIN	NOM	MAX
Profile	A	-	-	1.25
Ball Height	A1	0.16	0.21	0.3
Ball Thickness	A2	-	0.91	0.94
Ball Diameter	b	0.35	0.4	0.45
Body Size	D	8.95	9	9.05
Body Size	E	6.95	7	7.05
Ball Pitch	e	-	0.8	-
Ball Array D	GD	-	8	-
Ball Array E	GE	-	9	-

NAME	SYMBOL	MIN	NOM	MAX
Profile	A	-	-	1
Ball Height	A1	0.17	-	-
Ball Thickness	A2	0.62	-	0.76
Ball Diameter	b	0.35	0.4	0.45
Body Size	D	-	9	-
Body Size	E	-	7	-
Ball Pitch	e	-	0.8	-
Ball Array D	GD	-	8	-
Ball Array E	GE	-	9	-

NAME	SYMBOL	MIN	NOM	MAX
Profile	A	-	-	1.2
Ball Height	A1	-	0.22	-
Ball Thickness	A2	0.35	-	0.97
Ball Diameter	b	0.27	0.35	0.4
Body Size	D	8.9	9	9.1
Body Size	E	6.9	7	7.1
Ball Pitch	e	-	0.8	-
Ball Array D	GD	-	8	-
Ball Array E	GE	-	9	-

NAME	SYMBOL	MIN	NOM	MAX
Profile	A	-	-	1.2
Ball Height	A1	0.17	0.22	-
Ball Thickness	A2	0.81	-	0.97
Ball Diameter	b	0.35	0.4	0.45
Body Size	D	8.95	9	9.05
Body Size	E	6.95	7	7.05
Ball Pitch	e	-	0.8	-
Ball Array D	GD	-	8	-
Ball Array E	GE	-	8	-

NAME	SYMBOL	MIN	NOM	MAX
Profile	A	-	-	1.2
Ball Height	A1	0.17	-	-
Ball Thickness	A2	081	-	0.97
Ball Diameter	b	0.35	0.4	0.45
Body Size	D	-	9	-
Body Size	E	-	7	-
Ball Pitch	e	-	0.8	-
Ball Array D	GD	-	8	-
Ball Array E	GE	-	9	-

NAME	SYMBOL	MIN	NOM	MAX
Profile	A	-	-	1.2
Ball Height	A1	0.25	0.3	0.35
Ball Thickness	A2	0.71	0.76	0.81
Ball Diameter	b	0.35	0.4	0.45
Body Size	D	8.9	9	9.1
Body Size	E	6.9	7	7.1
Ball Pitch	e	-	0.8	-
Ball Array D	GD	-	8	-
Ball Array E	GE	-	8	-

NAME	SYMBOL	MIN	NOM	MAX
Profile	A	1	1.1	1.2
Ball Height	A1	0.18	0.23	0.28
Ball Thickness	A2	-	-	-
Ball Diameter	b	0.35	0.4	0.45
Body Size	D	8.9	9	9.1
Body Size	E	6.9	7	7.1
Ball Pitch	e	-	0.8	-
Ball Array D	GD	-	8	-
Ball Array E	GE	-	9	-

NAME	SYMBOL	MIN	NOM	MAX
Profile	A	1	1.1	1.2
Ball Height	A1	0.17	0.23	0.28
Ball Thickness	A2	-	-	-
Ball Diameter	b	0.35	0.4	0.45
Body Size	D	8.9	9	9.1
Body Size	E	6.9	7	7.1
Ball Pitch	e	-	0.8	-
Ball Array D	GD	-	8	-
Ball Array E	GE	-	8	-

NAME	SYMBOL	MIN	NOM	MAX
Profile	A	-	-	1.4
Ball Height	A1	0.2	0.25	0.3
Ball Thickness	A2	0.92	0.96	1.02
Ball Diameter	b	0.3	0.35	0.4
Body Size	D	8.9	9	9.1
Body Size	E	6.9	7	7.1
Ball Pitch	e	-	0.8	-
Ball Array D	GD	-	8	-
Ball Array E	GE	-	8	-

NAME	SYMBOL	MIN	NOM	MAX
Profile	A	-	-	1.2
Ball Height	A1	0.2	-	-
Ball Thickness	A2	-	0.79	-
Ball Diameter	b	0.35	0.4	0.45
Body Size	D	8.9	9	9.1
Body Size	E	6.9	7	7.1
Ball Pitch	e	-	0.8	-
Ball Array D	GD	-	8	-
Ball Array E	GE	-	8	-
