Converter

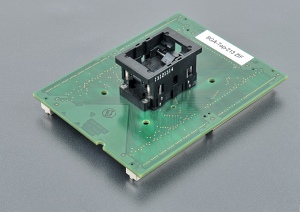

BGA-Top-213 ZIF
- top board of BGA converters
- ZIF socket accepts many variations of BGA packages, that differ in ball
diameter, ball width
and package thickness.
- The picture at Accepted package(s) section
shows the range of all dimensions of BGA packages,
which are accepted by this BGA-Top board.
- operation (mechanical) life of ZIF socket -
10.000 actuations
- socket: ZIF BGA208,
open top type
- bottom: 2 rows, 2x24 pins, square,
0.6x0.6mm
- Order no.:
70-1290
- Price: € 418,00
|
|
Converter manual
- For work with BGA device it
is necessary put together BGA-Top-213 ZIF with some BGA-Bottom-x board according to the
information provided by PG4UW software.
- Do not directly touch the
pins of the converter, because dirt may cause
errors during programming of device.
- The picture show, how to put
together the BGA-Top-x ZIF-CS and BGA-Bottom-x
boards to have complete BGA converter.
|
|
Accepted package(s)
|
|
BGA package
|
 |
|
|
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
- |
- |
1.2 |
|
Ball Height
|
A1 |
0.3 |
- |
0.4 |
|
Ball Thickness
|
A2 |
0.6 |
- |
0.8 |
|
Ball Diameter
|
b |
0.4 |
- |
0.5 |
|
Body Size
|
D |
14.9 |
- |
11.1 |
|
Body Size
|
E |
14.9 |
- |
15.1 |
|
Ball Pitch
|
e |
- |
0.8 |
- |
|
Ball Array D
|
GD |
- |
17 |
- |
|
Ball Array E
|
GE |
- |
17 |
- |
|
|
