Converter

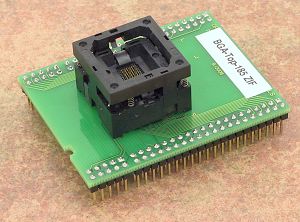

BGA-Top-185 ZIF
- top board of BGA converters
- ZIF socket accepts many variations of BGA packages, that differ in ball
diameter, ball width
and package thickness.
- The picture at Accepted package(s) section
shows the range of all dimensions of BGA packages,
which are accepted by this BGA-Top board.
- operation (mechanical) life of ZIF socket -
10.000 actuations
- socket: ZIF BGA48, (accept
package up to 63 balls), open top type
- bottom: 2 rows, 2x 25 pins, square,
0.6x0.6mm
- Order no.:
70-0991
- Price: €
360,00
|
|
|
Converter manual
- For work with BGA
device it is necessary put together BGA-Top-185 ZIF with some BGA-Bottom-x board according to the
information provided by PG4UW software.
- Do not directly touch
the pins of the converter, because dirt may cause
errors during programming of device.
- For handling with the
device we recommended to use a
vacuum pipette pick up tool.
-
The picture show, how to put together the BGA-Top-x
ZIF-CS and BGA-Bottom-x boards to have complete BGA
converter
|
|
Accepted package(s)
|
|
BGA
package
|
 |
|
|
|
|
