Converter

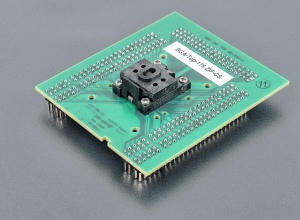

BGA-Top-176 ZIF-CS
- top board of BGA converters
- ZIF socket accepts many variations of BGA packages, that differ in ball
diameter, ball width
and package thickness.
- The picture at Accepted package(s) section
shows the range of all dimensions of BGA packages,
which are accepted by this BGA-Top board.
- operation (mechanical) life of ZIF socket -
500.000 actuations
- socket: ZIF BGA196, ClamShell type
- bottom: 8+3 rows, 8x25+3x20 pins, square,
0.6x0.6mm
- Order no.:
70-0944
- Price: € 630,00
|
|
|
Converter manual
- For work with BGA
device it is necessary put together BGA-Top-176 ZIF with some BGA-Bottom-x board according to the
information provided by PG4UW software.
- Do not directly touch
the pins of the converter, because dirt may cause
errors during programming of device.
- For handling with the
device we recommended to use a
vacuum pipette pick up tool.
-
The picture show, how to put together the BGA-Top-x
ZIF-CS and BGA-Bottom-x boards to have complete BGA
converter
-
Accepted
package dimensions:
|
|
|
|
Accepted package(s)
|
|
BGA
package
|
 |
|
|
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
0.9 |
1 |
1.1 |
|
Ball Height
|
A1 |
0.2 |
0.25 |
0.3 |
|
Ball Thickness
|
A2 |
0.7 |
0.76 |
0.82 |
|
Ball Diameter
|
b |
0.25 |
0.3 |
0.35 |
|
Body Size
|
D |
7.9 |
8 |
8.1 |
|
Body Size
|
E |
7.9 |
8 |
8.1 |
|
Ball Pitch
|
e |
- |
0.5 |
- |
|
Ball Array D
|
GD |
- |
14 |
- |
|
Ball Array E
|
GE |
- |
14 |
- |
|
|
|
|
|
