Converter

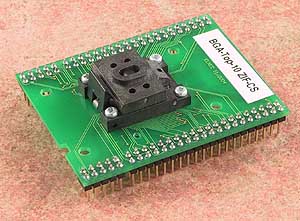

BGA-Top-10 ZIF-CS
- top board of BGA converters
- ZIF socket accepts many variations of BGA packages, that differ in ball
diameter, ball width
and package thickness.
- The picture at Accepted package(s) section
shows the range of all dimensions of BGA packages,
which are accepted by this BGA-Top board.
- operation (mechanical) life of ZIF socket - 500.000
actuations
- accessory for BeeProg,
JetProg, LabProg+ and
LabProg-48LV
- socket: ZIF BGA64,
ClamShell type
- bottom: 4 rows, 2x 25
pins, square,
0.6x0.6mm
- Order no.:
70-0264
- Price: € 430,00
|
|
|
Converter manual
- For work with BGA device it is
necessary put together BGA-Top-10 ZIF-CS with some
BGA-Bottom-x board according to the information
provided by PG4UW software.
- Do not directly touch the pins of
the converter, because dirt may cause errors during
programming of device.
- For handling with the
device we recommended to use a vacuum
pipette pick up tool.
-
The picture show, how to put
together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards
to have complete BGA converter.
 |
|
Accepted package(s)
|
|
BGA
Gehäuse
|
 |
|
|
|
|
