Converter

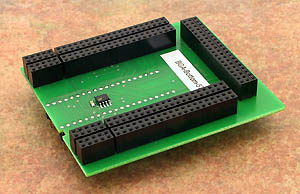

BGA-Bottom-57
- bottom board of BGA
converters, assigned for
Atmel AT89C51SND2C with balls in matrix
10x10
- socket: 8+3 rows, sockets for 8x25+3x20 wire wrap
pin
- bottom: 2 rows, 2x 24
pins, square, 0.6x0.6mm, rows
spacing
600mil
- order no.:
70-0601
- Price: € 148,99
|
|
|
Converter manual
- For work with BGA device it is
necessary put together BGA-Bottom-57 with some
BGA-Top-x ZIF-CS board according the information
provided by PG4UW software.
- Do not directly touch the pins of
the converter, because dirt may cause errors during
programming of device
- The picture show, how to put
together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards
to have complete BGA converter.
 |
|
|
|
