Converter
BGA-Bottom-108
- bottom board of BGA
converters, assigned for ST STM32F101xx/STM32F103xx
devices with balls in matrix 10x10
-
socket: 8+3 rows, sockets for
8x25+3x20 wire wrap
pin
- bottom: 2 rows, 2x 24
pins, square, 0.6x0.6mm, rows
spacing
600mil
- order no.: 70-0867
- Price: € 85,00
|
|
|
Converter manual
- For work with BGA device it is
necessary put together BGA-Bottom-108 with some
BGA-Top-x ZIF-CS board according the information
provided by PG4UW software.
- Do not directly touch the pins of
the converter, because dirt may cause errors during
programming of device

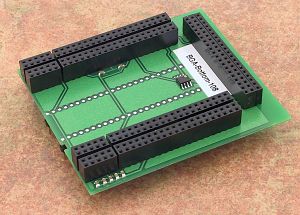

- The picture show, how to put
together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards
to have complete BGA converter.
 |
|
|
|
