Bottom TSOP56 NOR-5
Order No.: 70-1258

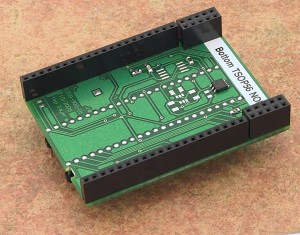

bottom board of TSOP56 adapters, assigned for Flash devices with pinout NOR-5

Ord. no. 70-1258
Socket 2 rows, 2x24 pins, wire wrap pins, 0.6x0.6mm
Bottom 2 rows, 2x24 pins square, 0.6x0.6mm,  row spacing 600mil
Class Specialized
Subclass EPROM/Flash

Order no.: 70-1258
Price:        € 15,00

Converter manual

  • For work with TSOP56 device it is necessary put together Bottom TSOP56 NOR-5 with Top TSOP56 ZIF board according the information provided by PG4UW software.
  • The picture show, how to put together the Top TSOP56 ZIF and Bottom TSOP56-x boards to have complete TSOP56 adapter.
  • Insert comlete adapter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this adapter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
  • Push the top of adapter ZIF socket to open it. Insert the device into the adapter ZIF socket. The right position of the programmed device in adapter ZIF socket is show at picture near (mainly left above) the adapter ZIF socket. Then release adapter ZIF socket.
  • Visually check interconnection between device and adapter ZIF socket. If everything looks OK, the device is ready for programming.
  • Be careful, because the incorrect insertion of adapter to the device programmer ZIF socket or device to the adapter ZIF socket can damage the programmed device.
  • To take out the device push the top of adapter ZIF socket and remove device from it.
  • When you finish work with adapter, remove it from the device programmer ZIF socket.
  • Do not directly touch the pins of the adapter and adapter ZIF socket, because dirt may cause errors during programming of device.
  • Operation conditions: operating temperature 5°C - 40°C (41°F - 104°F), operating humidity 20%...80%, non condensing.
