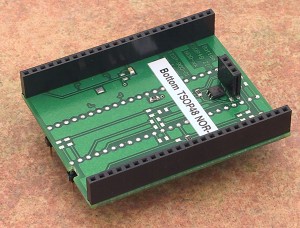

Bottom TSOP48 NOR-6
Order No.: 70-1222

bottom board of TSOP48 adapters, assigned for Flash devices with pinout NOR-6

Order no.: 70-1222
Price:        € 15,00

Converter manual

• Protect the pins of adapter from contamination. Don't touch the pins with bare hands. Any dirt and/or fat on adapter's pins may cause errors during programming.
• For work with device it is necessary put together NOR Bottom X with some NOR Top X board according the information provided by PG4UW software.

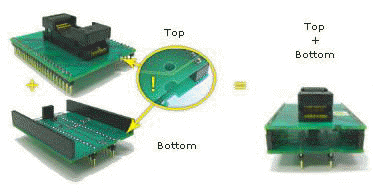

• The picture show, how to put together the NOR Buttom X and NOR Top X boards to have complete NOR adapter.
• Operation conditions: operating temperature 5°C - 40°C (41°F - 104°F), operating humidity 20%...80%, non condensing.
