Bottom R-TSOP48 NOR-3
Order No.: 70-1219

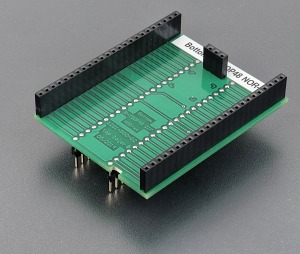

bottom board of NOR adapter, assigned for Flash devices with reverse pinout NOR-3
supported from PG4UW software version 3.06d

Order no.: 70-1219
Price:        € 30,00

Converter manual

• Protect the pins of adapter from contamination. Don't touch the pins with bare hands. Any dirt and/or fat on adapter's pins may cause errors during programming.
• For work with device it is necessary put together NOR Bottom X with some NOR Top X board according the information provided by PG4UW software.
• The picture show, how to put together the NOR Buttom X and NOR Top X boards to have complete NOR adapter.
• Operation conditions: operating temperature 5°C - 40°C (41°F - 104°F), operating humidity 20%...80%, non condensing.
