Converter

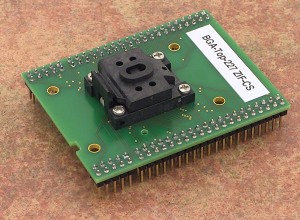

BGA-Top-227 ZIF-CS
- top board of BGA converters
- ZIF socket accepts many variations of BGA packages, that differ in ball
diameter, ball width
and package thickness.
- The picture at Accepted package(s) section
shows the range of all dimensions of BGA packages,
which are accepted by this BGA-Top board.
- operation
(mechanical) life of ZIF socket - 500.000
actuations
- socket: ZIF BGA25, ClamShell type
- bottom: 4 rows, 4x25 pins, square,
0.6x0.6mm
- Order no.: 70-1197
- Price: € 382,00
|
|
|
Converter manual
- For work with BGA device it is
necessary put together BGA-Top-227 ZIF-CS with some
BGA-Bottom-x board according to the information
provided by PG4UW software.
- Do not directly touch the pins of
the converter, because dirt may cause errors during
programming of device.
- The picture show, how to put
together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards
to have complete BGA converter
- For handling with the
device we recommended to use a
vacuum
pipette pick up tool.
 |
|
|
|
Accepted package(s)
|
|
BGA package
|
 |
|
|
|
| NAME | SYMBOL | MIN | NOM | MAX | | Profile | A |
- |
- |
1.2 | | Ball Height | A1 |
0.2 |
- |
- | | Ball Thickness | A2 |
- |
0.79 |
- | | Ball Diameter | b |
0.35 |
0.4 |
0.45 | | Body Size | D |
7.9 |
8 |
8.1 | | Body Size | E |
5.9 |
6 |
6.1 | | Ball Pitch | e |
- |
1 | - | | Ball Array D | GD |
- |
5 | - | | Ball Array E | GE |
- |
5 | - |
|
|
