Order No.: 70-0571

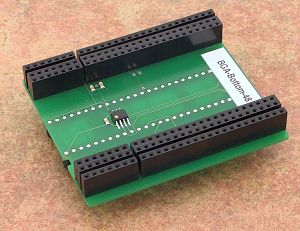

bottom board of BGA adapters, assigned for CPLD devices Xilinx CoolRunner-II/XA CoolRunner-II in matrix 14x14

Ord. no. 70-0571
Connection to BGA-Top-X 6 rows, sockets for 6x27 wire wrap pin
Bottom 2 rows, 2x24 pins square, 0.6x0.6mm,  row spacing 600mil
Subclass BGA-Bottom

Order no.: 70-0571
Price:        € 149,00

Converter manual

  • Protect the pins of adapter and adapter's ZIF socket from contamination. Don't touch the pins with bare hands. Any dirt and/or fat may cause errors during programming.
  • For work with BGA device it is necessary put together BGA-Bottom-48 with some BGA-Top-x board according the information provided by PG4UW software.
  • Operation conditions: operating temperature 5°C - 40°C (41°F - 104°F), operating humidity 20%...80%, non condensing.

  Back to top

The information in this document are subject to change without notice.
