T-EMU52 Zubehör

Home Produkte Simulators

Socket converters
for simulators

Part identification:

XXXX/YYYY ZZZZ

XXXX - type of socket and number of pins on device side
YYYY - type of socket and number of pins on simulator/emulator side
ZZZZ - additional identification

example: PLCC44/DIL40 MCS51

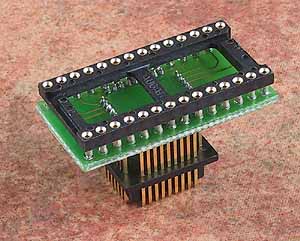

converter - pod

PLCC32/DIL28 EPROM

assigned for simulating/emulating such EPROM in PLCC32, which have 28 pins in DIL (e.g. 27256, 27512)
NC pins 1,12,17,26
mechanical life - 500 cycles
ord. no.: 70-0091
Price: € 99,31

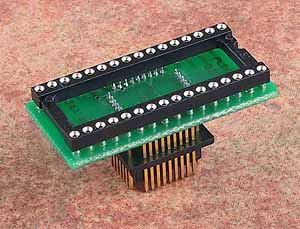

converter - pod

PLCC32/DIL32

assigned for simulating/emulating all PLCC32 devices
mechanical life - 500 cycles
wiring 1:1
ord. no.: 70-0047
Price: € 105,00

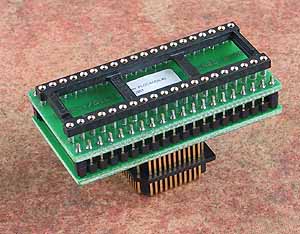

converter - pod

PLCC44/DIL40 MCS51

assigned for emulating microcontrollers '51 family in socket PLCC44
NC pins 1,12,23,34
mechanical life - 500 cycles
ord. no.: 70-0049
Price: € 99,31

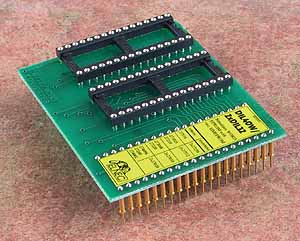

converter

DIL40W/DIL2x32 (16bit->2x8bit)

assigned for simulating 16-bit EPROMs in DIL40 socket with two 8-bit simulators
ord. no.: 70-0014
Price: € 23,79

Y-Cabel

Y-cabel to connect 2x simulators SIMEPROM-01B

Ord. no.: 60-0017
Price: € 21,86
