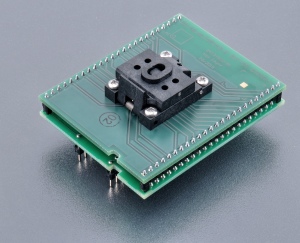

DIL48/WLCSP143-2 ZIF-CS STM32-1
Order No.: 70-3493

specialized adapter for STMicroelectronics STM32F7xx devices in WLCSP143 package
operation (mechanical) life of ZIF socket - 500.000 actuations
supported from PG4UW software version 3.27s

Move the cursor over the picture for additional view

Order no.: 70-3493
Price:        €

Adapter manual

• Protect the pins of adapter and adapter's ZIF socket from contamination. Don't touch the pins with bare hands. Any dirt and/or fat may cause errors during programming.
• Usage of vacuum pick up tool is expected for device handling.
• Proceed with care! Incorrect insertion of adapter in programmer's ZIF socket or device in adapter's ZIF socket may lead to programmed device damage.
• Visually check the placement of adapter in programmer's ZIF socket.
• Release the pawl on adapter's ZIF socket to open it. The socket cap will open by spring force. Insert the device into adapter's ZIF socket. The correct position of the programmed device is shown on PCB of the module. The reference corner (position of pin A1) of the device is indicated by dot.
• Visually check the placement of programmed device in adapter's ZIF socket. If it looks OK, close adapter's ZIF socket cap by hand and secure the pawl.
• To take out the device from adapter, release the pawl on adapter's ZIF socket and remove the device.
• When you finish the work with adapter, remove it from programmer's ZIF socket.
• Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.
• For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

BGA package
