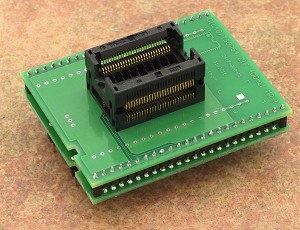

Converter
DIL48/TSOP54 ZIF 400mil
MR-1
- specialized adapter for MR4A16BYS35
devices in TSOP54 package
- socket: ZIF TSOP54, open top type
- bottom: 2 rows, 2x24 pins, Square,
0.6x0.6mm, row spacing 600mil
- operation (mechanical) life
of ZIF socket - 10.000 actuations
- Order
no.: 70-2617
- Price: €
|
|
Converter manual
- Insert converter to the
device programmer ZIF socket according to the
picture placed near of it. If you have some
doubts about orientation of this converter in
device programmer ZIF socket, it is valid
general rule, the orientation of the text of
title is the same as the text on the top of the
device programmer.
- Push the top of converter ZIF
socket to open it. Insert the device into the
converter ZIF socket. The right position of the
programmed device in converter ZIF socket is
show at picture near (mainly left above) the
converter ZIF socket. Then release converter ZIF
socket. If you use this converter for devices
with less than 48 pins, then place device to the
bottom edge of converter ZIFsocket. Upper
contacts stay unconnected.
- Visually check
interconnection between device and converter ZIF
socket. If everything looks OK, the device is
ready for programming.
- Be careful, because the
incorrect insertion of converter to the device
programmer ZIF socket or device to the converter
ZIF socket can damage the programmed device.
- To take out the device push
the top of converter ZIF socket and remove
device from it.
- When you finish work with
converter, remove it from the device programmer
ZIF socket.
- Do not directly touch the
pins of the converter and converter ZIF socket,
because dirt may cause errors during programming
of device.
- For handling with the device
we recommended to use a
vacuum pick up tool.
|
|

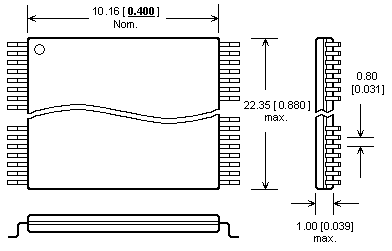

Accepted package(s)
|
|
|
|
TSOP54 |
 |
|
|
|
|
