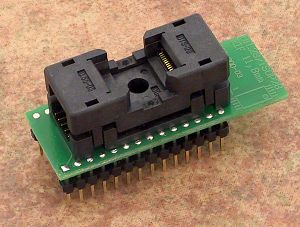

universal adapter, assigned for devices in TSOP28 package (for example
EPROMs, EEPROMs, serial FLASHs, SRAMs)
operation (mechanical) life of ZIF socket - 10.000 actuations
||ZIF TSOP28, open top type
||2 rows, 2x14 pins, 0.6x0.6mm, row spacing
Insert converter to the device programmer ZIF socket
according to the picture placed near of it. If you
have some doubts about orientation of this converter
in device programmer ZIF socket, it is valid general
rule, the orientation of the text of title is the
same as the text on the top of the device
Push the top of adapter ZIF socket to open it.
Insert the device into the adapter ZIF socket. The
right position of the programmed device in adapter
ZIF socket is show at picture near (mainly left
above) the adapter ZIF socket. Then release adapter
Visual check interconnection between device and
converter ZIF socket. If everything looks
OK, close it and now, device is ready for
Be careful, because the incorrect insertion of
converter to the device programmer ZIF socket or
device to the converter ZIF socket can
damage the programmed device.
When you finish work with adapter, remove it from
the device programmer ZIF socket.
- To take out the device, open
converter ZIF socket and remove device from it.
- When you finish work with
converter, remove it from the programmer ZIF socket.
- Do not directly touch the pins of
the converter and converter ZIF socket, because dirt
may cause errors during programming of device.
- Operation conditions: operating temperature 5°C ÷
40°C (41°F ÷ 104°F), operating humidity 20%...80%,
- If programming yields isn't 100% when using programming adapter or if some
unreliability appears, try to connect one 22nF-100nF multilayer capacitor (that meet the EIA X7R or Z5U
specification) between leads of adapter connected to pins VCC and GND pins of programmed chip.
- For handling with the device we recommended to use a
vacuum pick up
The information in this document are subject to
change without notice.
