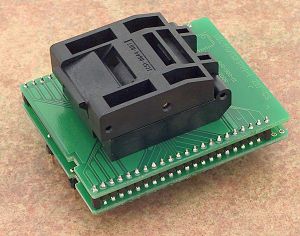

Converter
DIL44/TQFP44-1 ZIF-CS
- universal converter, assigned for
devices in TQFP44 package
-
socket: ZIF QFP44, ClamShell type
-
Bottom: 2 rows, 2x22 pins, square, 0.6x0.6, row
spacing 600mil
- operation (mechanical) life of ZIF socket - 10.000 actuations
- Order no.: 70-0968
- Price: €
169,00
|
|
|
|
|
Wiring is:
|
| TQFP |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
| DIL |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |
26 |
27 |
28 |
| TQFP |
23 |
24 |
25 |
26 |
27 |
28 |
29 |
30 |
31 |
32 |
33 |
34 |
35 |
36 |
37 |
38 |
39 |
40 |
41 |
42 |
43 |
44 |
| DIL |
29 |
30 |
31 |
32 |
33 |
34 |
35 |
36 |
37 |
38 |
39 |
40 |
41 |
42 |
43 |
44 |
1 |
2 |
3 |
4 |
5 |
6 |
|
|
Converter manual
- Insert converter to the
device programmer ZIF socket according to the
picture placed near of it. If you have some doubts
about orientation of this converter in device
programmer ZIF socket, it is valid general rule, the
orientation of the text of title is the same as the
text on the top of the device programmer.
- Open the converter ClamShell ZIF
socket. Insert the device into it (place device on
contacts). The right position of the programmed
device in converter ZIF socket is show at picture
near (mainly left above) the converter ZIF socket.
On this picture reference corner (e.g. position of
pin 1) of device is indicated by dot, by number 1,
by bezel or by any combination of them.
- Visually check interconnection
between device and converter ClamShell ZIF socket.
If everything looks OK, close it and now, device is
ready for programming.
- Be careful, because the
incorrect insertion of converter to the device
programmer ZIF socket or device to the converter
ClamShell ZIF socket can damage the programmed
device.
- To take out the device, open
converter ClamShell ZIF socket and remove device
from it.
- When you finish work with
converter, remove it from the device programmer ZIF
socket.
- Do not directly touch the pins
of the converter and converter ZIF socket, because
dirt may cause errors during programming of device.
- For handling with the device we
recommended to use a
vacuum pick up
tool.
|
|
Accepted package(s)
|
| TQFP44 |
 |
|
|
|
|
