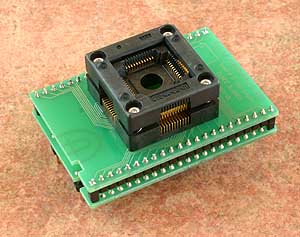

Converter

DIL44/TQFP44-3  ZIF

• universal converter, assigned for devices in TQFP44

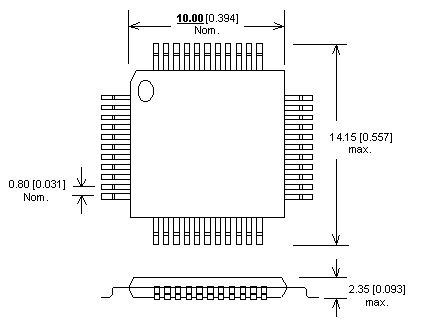

• package body 10x10mm , outlets 13.9x13.9mm , 0.8mm pin pitch
• wiring is TQFP1-DIL1, TQFP2-DIL2, .., TQFP43-DIL43, TQFP44-DIL44
• operation (mechanical) life of ZIF socket - 10.000 actuations
• Order no.: 70-0146
• Price: € 134,40
