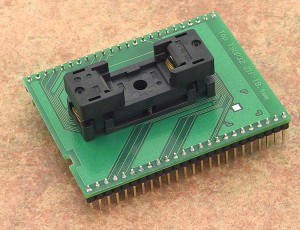

Top TSOP32 ZIF 18.4mm
Order No.: 70-1250

top board of TSOP32 adapters (mainly FLASH EPROM with 32-pins)
operation (mechanical) life of ZIF socket - 10.000 actuations

Ord. no. 70-1250
Socket ZIF TSOP32, open top type
Bottom 2 rows, 2x24 pins square, 0.6x0.6mm, row spacing 600mil
Class Specialized
Subclass EPROM/Flash

Order no.: 70-1250
Price:        € 118,00

Converter manual

  • Protect the pins of adapter and adapter's ZIF socket from contamination. Don't touch the pins with bare hands. Any dirt and/or fat may cause errors during programming.
  • Usage of vacuum pick up tool is expected for device handling.
  • Proceed with care! Incorrect insertion of adapter in programmer's ZIF socket or device in adapter's ZIF socket may lead to programmed device damage.
  • For work with TSOP32 device it is necessary put together Top TSOP32 ZIF 18.4mm with some Bottom TSOP32-x board according to the information provided by PG4UW software.
  • Insert comlete adapter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this adapter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
  • Push the top of adapter ZIF socket to open it. Insert the device into the adapter ZIF socket. The right position of the programmed device in adapter ZIF socket is show at picture near (mainly left above) the adapter ZIF socket. Then release adapter ZIF socket.
  • Do not press on device while inserting it and/or releasing the cover.
  • Visual check interconnection between device and converter ZIF socket. If everything looks OK, close it and now, device is ready for programming.
  • To take out the device from adapter, push the cover of adapter's ZIF socket and remove the device.
  • When you finish work with adapter, remove it from the device programmer ZIF socket.
  • Operation conditions: operating temperature 5°C - 40°C (41°F - 104°F), operating humidity 20%...80%, non condensing.
  • For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

TSOP32
