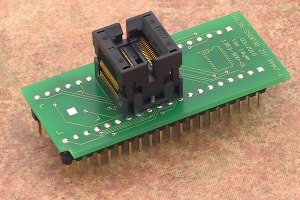

• Insert converter to the programmer ZIF socket according to the picture placed near of it. Push the top of converter ZIF socket to open it. Insert the device into it according to the picture placed near of it and release converter ZIF socket.
• Push the top of converter ZIF socket to open it.. Insert the device into it (place device on contacts). The right position of the programmed device in converter ZIF socket is show at picture near (mainly left above) the converter ZIF socket. On this picture reference corner (e.g. position of pin 1) of device is indicated by dot, by number 1, by bezel or by any combination of them. If you use this converter for devices with less than 38 pins, then then place device to the rightmost position in converter ZIF socket. Upper contacts stay unconnected.
• Visually check interconnection between device and converter ZIF socket. If everything looks OK, the device is ready for programming.
• Be careful, because the incorrect insertion of converter to the programmer ZIF socket or device to the converter ZIF socket can damage the programmed device.
• To take out the device, open converter ClamShell ZIF socket and remove device from it.
• When you finish work with converter, remove it from the programmer ZIF socket.
• Do not directly touch the pins of the converter and converter ZIF socket, because dirt may cause errors during programming of device.
• For handling with the device we recommended to use a vacuum pick up tool.
