Converter manual

• Insert converter to the programmer ZIF socket according to the picture placed near of it. Open the converter ClamShell ZIF socket. Insert the device into it (place device on contacts) according to the picture placed near of it.
• Visually check interconnection between device and converter ClamShell ZIF socket. If everything looks OK, close it and now, device is ready for programming.
• Be careful, because the incorrect insertion of converter to the programmer ZIF socket or device to the converter ClamShell ZIF socket can damage the programmed device.
• To take out the device, open converter ClamShell ZIF socket and remove device from it.
• When you finish work with converter, remove it from the programmer ZIF socket.
• Do not directly touch the pins of the converter and converter ZIF socket, because dirt may cause errors during programming of device.
• For handling with the device we recommended to use a vacuum pick up tool.

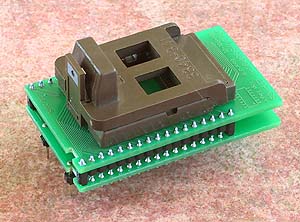

• The ZIF socket on the DIL44/PLCC44 ZIF-CS can accommodate the LCC44 package. A shim must be used to make up the difference in thickness between the PLCC and LCC packages. The shim should be between 0.6mm (0.023inch) and 0,76mm (0.030inch) thick and cut to a size of 14mm (0.55inch) by 14mm (0.55inch). It should be affixed to the inside of the cover of the socket. Test close the socket, without a device, to confirm the shim does not interfere with the interlocking parts of the socket.

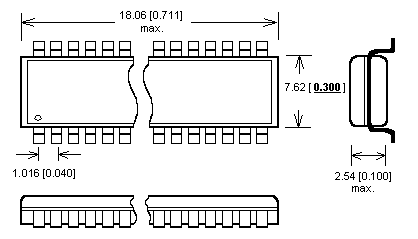

Accepted package(s)
