Sockel Converter für Programmer

Insert converter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this converter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
Open the converter ZIF socket by lever (lever is at upper position). Insert the device into it according to the picture placed near of it and close converter ZIF socket by lever (lever is at lower position). If you use this converter for devices with less than 42 pins, then place device to the bottom edge of converter ZIF socket. Upper contacts stay unconnected.
Visually check interconnection between device and converter ZIF socket. If everything looks OK, the device is ready for programming.
Be careful, because the incorrect insertion of converter to the device programmer ZIF socket or device to the converter ZIF socket can damage the programmed device.
To take out the device open the converter ZIF socket by lever (lever is at upper position) and remove device from it.
When you finish work with converter, remove it from the device programmer ZIF socket.
Do not directly touch the pins of the converter and converter ZIF socket, because dirt may cause errors during programming of device.

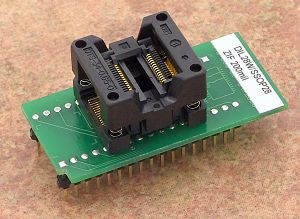

DIL28W/SSOP28 ZIF 200mil
