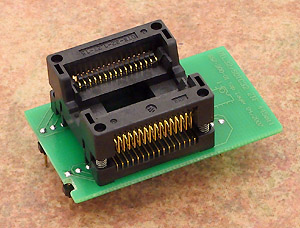

Converter
DIL32/SOIC32 ZIF 445 mil
- universal converter, assigned for all SOIC devices
up to 32-pins, 445 mil
- operation (mechanical) life of ZIF socket - 10.000 actuations
- socket: open top type
- bottom: 2 rows, 2x 16 pins, square, 0.6x0.6mm, rows spacing
600mil
- Order no.: 70-0657
- Price:
199,00
|
|
|
|
|
Accepted package(s)
|
|
|
Converter manual
- Insert converter to the device programmer ZIF socket according to the
picture placed near of it. If you have some doubts about orientation of this
converter in device programmer ZIF socket, it is valid general rule, the
orientation of the text of title is the same as the text on the top of the
device programmer.
- Push the top of converter ZIF socket to open it. Insert the device into
the converter ZIF socket. The right position of the programmed device in
converter ZIF socket is show at picture near (mainly left above) the converter
ZIF socket. Then release converter ZIF socket.
- Visually check interconnection between device and converter ZIF socket. If
everything looks OK, the device is ready for programming.
- Be careful, because the incorrect insertion of converter to the device
programmer ZIF socket or device to the converter ZIF socket can damage the
programmed device.
- To take out the device push the top of converter ZIF socket and remove
device from it.
- When you finish work with converter, remove it from the device programmer
ZIF socket.
- Do not directly touch the pins of the converter and converter ZIF socket,
because dirt may cause errors during programming of device.
- For handling with the device we recommended to use a
vacuum
pick up tool.
- WARNING! Due to special construction of used ZIF socket, some SOIC32 445
mil chips don't fit into this converter. Therefore we don't recommend to use
this converter for other chips as mentioned in the in the PG4UW software
and/or in the device lists of Elnec programmers.
|

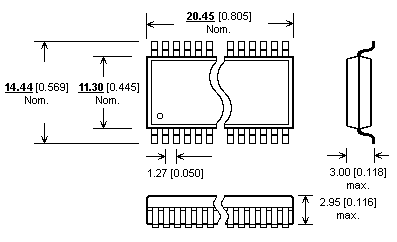

| SOIC32 |
 |
|
|
|
|
