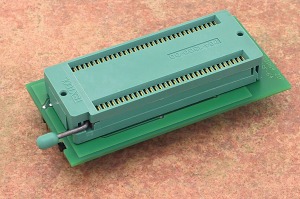

DIL32/SDIP64 ZIF PCA4738SF-64
Order No.: 70-2515

specialized adapter for Renesas M38039FFSP/M38049FFSP in SDIP64 package
operation (mechanical) life of ZIF socket - 25.000 actuations

Ord. no. 70-2515
Socket ZIF SDIP64, open top type
Bottom 2 rows, 2x20 pins square, 0.6x0.6mm, row spacing 600mil
Class Specialized
Subclass Mitsubishi/Renesas MCU

Order no.: 70-2515
Price:        € 236,00

Converter manual

  • Protect the pins of adapter and adapter's ZIF socket from contamination. Don't touch the pins with bare hands. Any dirt and/or fat may cause errors during programming.
  • Usage of vacuum pick up tool is expected for device handling.
  • Proceed with care! Incorrect insertion of adapter in programmer's ZIF socket or device in adapter's ZIF socket may lead to programmed device damage.
  • Insert adapter into programmer's ZIF socket. If you are in doubts about orientation of the adapter in programmer's ZIF socket, there is a rule of thumb - orientation of adapter's name text is the same as orientation of the text on the top of programmer.
  • Visually check the placement of adapter in programmer's ZIF socket.
  • Open the adapter ZIF socket by lever (lever is at upper position). Insert the device into it according to the picture placed near of it and close adapter ZIF socket by lever (lever is at lower position).
  • Visual check interconnection between device and converter ZIF socket. If everything looks OK, close it and now, device is ready for programming.
  • To take out the device open the adapter ZIF socket by lever (lever is at upper position) and remove device from it.
  • When you finish work with adapter, remove it from the device programmer ZIF socket.
  • Operation conditions: operating temperature 5°C - 40°C (41°F - 104°F), operating humidity 20%...80%, non condensing.
  • For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

SDIP64
