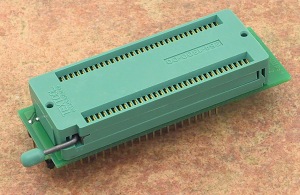

Converter
DIL48/SDIP64 ZIF M38-2
- special converter,
assigned for Renesas/Mitsubishi M38039GCHS in SDIP64
package
- operation (mechanical)
life of ZIF socket - 25.000 actuations
- socket: ZIF SDIP64
- bottom: 2 rows, 2x 24
pins, square, 0.6x0.6mm, rows spacing 600mil
- Order no.: 70-2169
- Price: € 359,00
|
Converter
manual
- Insert converter to
the device programmer ZIF socket according to the
picture placed near of it. If you have some doubts
about orientation of this converter in device
programmer ZIF socket, it is valid general rule,
the orientation of the text of title is the same
as the text on the top of the device programmer.
- Open the converter
ZIF socket by lever (lever is at upper position).
Insert the device into it according to the picture
placed near of it and close converter ZIF socket
by lever (lever is at lower position).
- Visually check
interconnection between device and converter ZIF
socket. If everything looks OK, the device is
ready for programming.
- Be careful, because
the incorrect insertion of converter to the device
programmer ZIF socket or device to the converter
ZIF socket can damage the programmed device.
- To take out the
device open the converter ZIF socket by lever (lever
is at upper position) and remove device from it.
- When you finish work
with converter, remove it from the device
programmer ZIF socket.
- Do not directly
touch the pins of the converter and converter ZIF
socket, because dirt may cause errors during
programming of device.
|
|
Accepted package(s)
|
| SDIP64 |
 |
|
|
|
|
