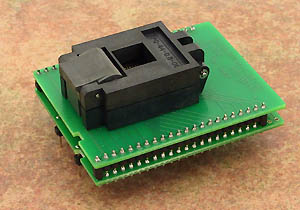

Converter
DIL44/QFP44-4 ZIF-CS
- universal converter, assigned for devices in
TQFP44
- Suitable e.g. for MCS51 family in TQFP44
package
- operation (mechanical) life of ZIF socket - 10.000 actuations
- socket: ZIF QFP44, ClamShell type
- bottom: 2 rows, 2x 22
pins, square, 0.6x0.6mm, rows
spacing
600mil
- Order no.: 70-0340
- Price: € 163,60
|
|
|
|
Wiring is:
| TQFP - |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
| DIL - |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |
26 |
27 |
28 |
| TQFP - |
23 |
24 |
25 |
26 |
27 |
28 |
29 |
30 |
31 |
32 |
33 |
34 |
35 |
36 |
37 |
38 |
39 |
40 |
41 |
42 |
43 |
44 |
| DIL - |
29 |
30 |
31 |
32 |
33 |
34 |
35 |
36 |
37 |
38 |
39 |
40 |
41 |
42 |
43 |
44 |
1 |
2 |
3 |
4 |
5 |
6 | |
|
|
Converter manual
-
Insert converter to the programmer
ZIF socket according to the picture placed near of it.
Open the converter ClamShell ZIF socket. Insert the
device into it (place device on contacts). The right
position of the programmed device in converter ZIF
socket is show at picture near (mainly left above) the
converter ZIF socket.
-
Visually check interconnection
between device and converter ClamShell ZIF socket. If
everything looks OK, close it and now, device is ready
for programming.
-
Be careful, because the incorrect
insertion of converter to the programmer ZIF socket or
device to the converter ClamShell ZIF socket can
damage the programmed device.
-
To take out the
device, open
converter ClamShell ZIF socket and remove device from
it.
-
When you finish work with
converter, remove it from the programmer ZIF socket.
-
Do not directly touch the pins of
the converter and converter ZIF socket, because dirt
may cause errors during programming of device.
-
For handling with the device we
recommended to use a vacuum pick up
tool.
|
|

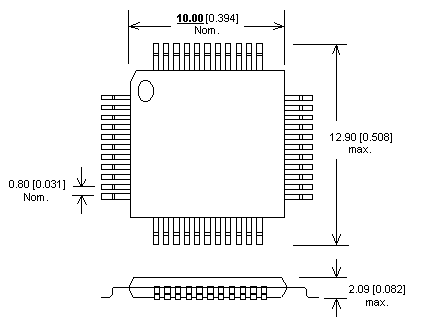

Accepted package(s)
|
| PQFP44 |
 |
|
|
|
|
