Converter manual

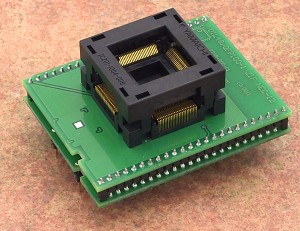

• Insert converter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this converter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
• Push the top of converter ZIF socket to open it. Insert the device into the converter ZIF socket. The right position of the programmed device in converter ZIF socket is show at picture near (mainly left above) the converter ZIF socket. On this picture reference corner (e.g. position of pin 1) of device is indicated by dot, by number 1, by bezel or by any combination of them. Then release converter ZIF socket.
•  Visually check interconnection between device and converter ZIF socket. If everything looks OK, the device is ready for programming.
• Be careful, because the incorrect insertion of converter to the device programmer ZIF socket or device to the converter ZIF socket can damage the programmed device.
• To take out the device push the top of converter ZIF socket and remove device from it.
• When you finish work with converter, remove it from the device programmer ZIF socket.
• Do not directly touch the pins of the converter and converter ZIF socket, because dirt may cause errors during programming of device.
• For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)
