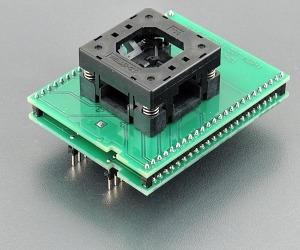

DIL48/QFN24 ZIF PLD-1
Order No.: 70-3126

specialized adapter for Lattice ispPAC-POWR607-01 in QFN24 package
operation (mechanical) life of ZIF socket - 10.000 actuations
supported from PG4UW software version 3.04j

Ord. no. 70-3126
Socket ZIF QFN24, open top type
Bottom 2 rows, 2x24 pins square, 0.6x0.6mm,  row spacing 600mil
Class Specialized
Subclass PLD

Order no.: 70-3126
Price:        € 264,00

Converter manual

  • Protect the pins of adapter and adapter's ZIF socket from contamination. Don't touch the pins with bare hands. Any dirt and/or fat may cause errors during programming.
  • Usage of vacuum pick up tool is expected for device handling.
  • Proceed with care! Incorrect insertion of adapter in programmer's ZIF socket or device in adapter's ZIF socket may lead to programmed device damage.
  • Insert converter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this converter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
  • Push the top of adapter ZIF socket to open it. Correct position of programmed device in adapter's ZIF socket is indicated by picture near (usually on left above) the adapter's ZIF socket. On that picture, reference corner of device (e.g. position of pin 1) is indicated by dot, by number 1, by bevelled corner or by any combination of mentioned.Then release adapter ZIF socket.
  • Do not press on device while inserting it and/or releasing the cover.
  • Visual check interconnection between device and converter ZIF socket. If everything looks OK, close it and now, device is ready for programming.
  • Be careful, because the incorrect insertion of converter to the device programmer ZIF socket or device to the converter ZIF socket can damage the programmed device.
  • When you finish work with adapter, remove it from the device programmer ZIF socket.
  • To take out the device, open converter ZIF socket and remove device from it.
  • When you finish work with converter, remove it from the programmer ZIF socket.
  • Do not directly touch the pins of the converter and converter ZIF socket, because dirt may cause errors during programming of device.
  • Operation conditions: operating temperature 5°C - 40°C (41°F - 104°F), operating humidity 20%...80%, non condensing.
  • For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

QFN24
